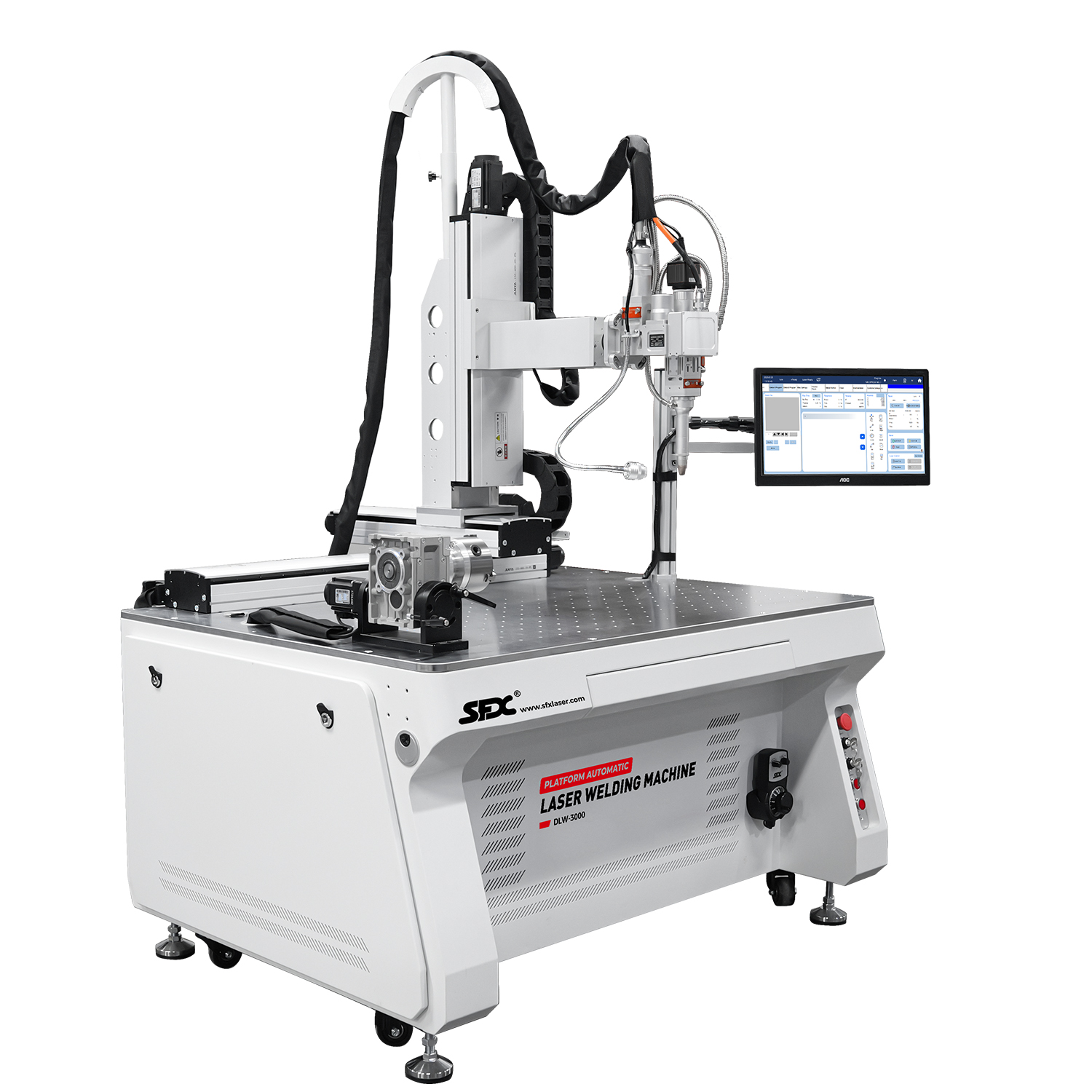

1000W 1500W 2000W 3000W Platform Automatic Laser Welding Machine Thin Metal Plate Laser Welder


DLW-1000-VI, DLW-1500-VI, DLW-2000-VI, DLW-3000-VI , , , Brand:

Product Parameters

  • Model:DLW-1000-VI, DLW-1500-VI, DLW-2000-VI, DLW-3000-VI
  • Laser Power:1000W, 1500W, 2000W, 3000W
  • XYZ Stroke:800*300*300mm(Customizable)
  • Laser Wavelength:1080±5nm
  • Spot Shape:Ring(Optional multi-graphics)
  • Spot Size:0-5mm
  • Input Power:AC220V±15% 50/60Hz  AC380V±15% 50/60Hz(3000W)
  • Cooling Method:External Chiller

Features and Advantages:

  • Intelligent Design, fully automatic welding meet your various needs.
  • Beautiful weld seam, firm and fast. Less polishing and grinding, better work efficiency.
  • Maintenance free. Modular desgin for the whole machine, stable performance.
  • Easy to operate. Simple operation, low cost and low requirements for workers.
  • Wide application. Wide range of applications, high precision, fast
  • High power. High aspect ratio of the weld seam, small heat-affected area, small deformation, fast welding speed.
  • Long service life. Newly laser technology. The service life can reach more than tens of thoousands of hours.
  • Can realize arbitrary trajectory welding, Can be done fully automatically or semi-automatic Weld metal workpieces with arbitrary trajectories such as points, straight lines, and arcs.
  • Laser welding can realize spot welding, butt welding, stitch welding, sealing welding, and otherwelding modes for thin-walled materials and precision parts. Combined with aiming combination desgin, visual CCD acquisition, integrated infrared sensor to ensure accurate positioning.
  • Multi-Axis Servo Welding Table. High positioning accuracy, sensitive response, shockproof design, no need to move the product manually, automatic movement for welding.
  • Solder Joint Monitoring. High-definition CCD display ensures better observation of the welding process. The industrial computer control system, and special software for welding provide adjustable parameter sets and multi-level waveforms.
  • Workbench. The steel plate fine grinding table of the whole machine has a compact and firm structure, and the processing direction is flexible and adjustable, and can be controlled freely.

Application and Warranty:

  • Applicable Materials: Stainless steel, die steel, nickel, zinc, aluminum. Especially in thin plate welding has obvious advantages.
  • Applicable Field: Widely used in aerospace equipement, shipbuilding, instrumentation, mechanical and electrical products, automobile manufacturing and other industries.
  • One year for the whole machine, two years warranty for the laser source.
  • Offer Remote Assistance. Free Shipping by Sea, No Import Duty for American Customers.


1000W, 1500W, 2000W

Product details
Cooling Method External Chiller
Input Power AC220V±15% 50/60Hz AC380V±15% 50/60Hz(3000W)
Laser Power 1000W, 1500W, 2000W, 3000W
Laser Wavelength 1080±5nm
Model DLW-1000-VI, DLW-1500-VI, DLW-2000-VI, DLW-3000-VI
Spot Shape Ring(Optional multi-graphics)
Spot Size 0-5mm
XYZ Stroke 800*300*300mm(Customizable)
