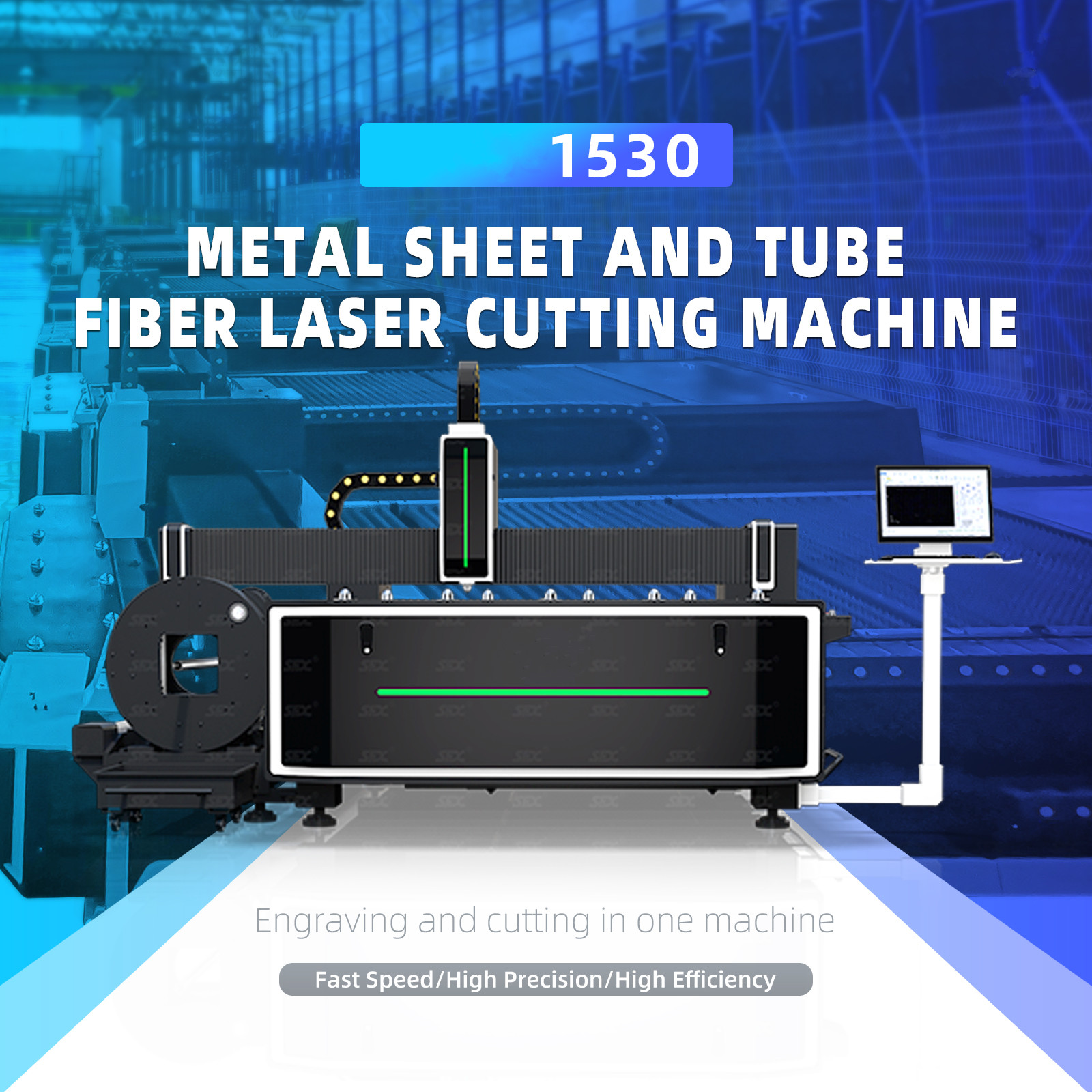

2000W 3000W 6000W 1530 Metal Sheet and Tube Fiber Laser Cutting Machine
Product Parameters:
- Model: 1530
- Laser Type: Fiber Laser, 1080nm
- Laser Power: 1KW/1.5KW/2KW/3KW/4KW/6KW/8KW
- Working Area: Sheet: 1500mm*3000mm Tube:220mm diameter*3 meters or 6 meters length
- Min Line Width: 0.1mm
- Positioning Accuracy: 0.01mm
- Max. Cutting Speed: 60m/min
- Max. Acceleration: 1.5G
- Transmission Type: Precision dual gear rack transmission
- Driving System: Serve motors
- Cutting Thickness: Depending on laser power and material
- Assisting Gas: Compressed air, oxygen and nitrogen
- Cooling Mode: Industrial circulation water chiller
- Visual Positioning: Red Dot
- Machine Weight: Net 4500kgs
- Working voltage: 3 Phase 240V/380V 50HZ/60HZ
Machine advantages:
- One machine with multiple uses, it can not only meet flat plates cutting, but also tubes cutting, saving more than 50% of space and bringing higher efficiency, extremely cost-effective.
- Built-in advance fiber laser plate cutting system, which is easy to switch; the quickly imported part drawings can be processed into different graphics at will.
- The maximum size of metal sheet cutting is 1500*3000mm, and the rotary device can hold up maximum 220mm diameter metal tube, standard tube length is 3 meters or 6 meters, other length also can be customized.
- Adopting an advanced chuck clamping system, the chuck self-adjusts the center and automatically adjusts the clamping force according to the profile specifications to ensure that the thin tube is clamped without damage.
- The beam quality is ideal: smaller focused spot, finer cutting lines, smoother incision, workpiece no deformation, higher work efficiency, and excellent processing quality.
- With many years of experience in laser equipment production, the whole machine enjoys a two-year warranty, making your purchase worry-free.
Our Advantages:
1. Financial installment assistance can be provided as a solution to US customer’s financial problems.
2. Our local technical support in USA can solve customer’s after-sales problems faster and more professionally.
3. We provide free sample processing service, which can cut according to the customer’s drawing, and provide video.
4. We can customize the configuration of the machine according to the customer’s requirements and design the most suitable machine for customers.
5. After the production of the customer’s machine is completed, we will provide pictures and trial processing video. We will only arrange transportation after the customer is satisfied. After the machine is delivered, we will also provide customers online one-on-one guidance to install and operate the machine.
Applicable materials: Carbon steel, manganses steel, stainless steel, color steel plate, foliate lamina, aluminum plate, aluminum alloy, brass, copper, titanium plate
Laser Power | 3000W, 6000W, 2000W |
---|
Product details | |
Assisting Gas | Compressed air, oxygen and nitrogen |
Cooling Mode | Industrial circulation water chiller |
Cutting Thickness | Depending on laser power and material |
Driving System | Serve motors |
Laser Power | 1KW/1.5KW/2KW/3KW/4KW/6KW/8KW |
Laser Type | Fiber Laser, 1080nm |
Machine Weight | Net 4500kgs |
Max. Acceleration | 1.5G |
Max. Cutting Speed | 60m/min |
Min Line Width | 0.1mm |
Model | 1530 |
Positioning Accuracy | 0.01mm |
Transmission Type | Precision dual gear rack transmission |
Visual Positioning | Red Dot |
Working Area | 1500mm*3000mm Tube:220mm diameter*3 meters or 6 meters length |
Working voltage | 3 Phase 240V/380V 50HZ/60HZ |
