Auto Focus Split 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine

Auto Focus JPT LP+ 20W/30W/50W Fiber Laser Engraver for Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, Platinum, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,.etc.

Clear
SFX-GS-JPT , , , , Brand:
  • Laser Source: 20W/30W/50W JPT LP+
  • Adjustable Frequency Range: 1-600kHz
  • Pulse Width: 200ns
  • Marking Area(Lens): 110*110mm/150*150mm/175*175mm Optional
  • Rotary Axis: D80/100/125mm Optional
  • Software: EZCAD2.0/EZCAD3.0. Support WIN7/8/10 System
  • Infrared Distance Sensor. Automatically Calculate the Focal Length to Achieve Precise Focus.

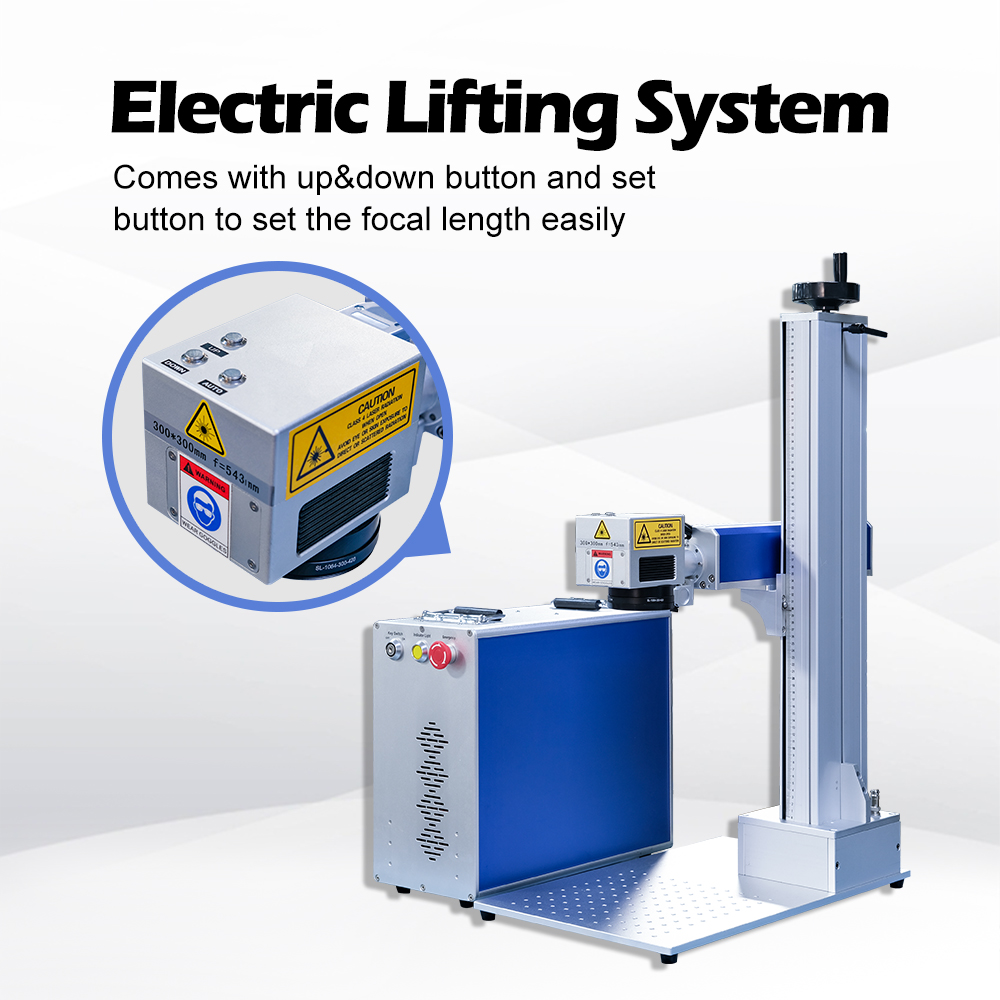

  • Auto Focus System. Comes with Auto, UP & Down Button for Easy Focusing.
  • Marking on various metal like Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
  • Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
  • Two-Year Warranty. Offer customer and technical support. Easy Operation, English User Manual, VCD training video, software sending together with the machine
  • The function of marking software is powerful. The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
  • The machine can directly use SHX, TTF fonts;Automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc supported.
  • Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
  • Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.
  • Free shipping by DHL/UPS around 7 to 15 days.






Laser Power

20W, 30W, 50W

Lens

70*70mm, 110×110mm, 150×150mm, 175×175mm, 200*200mm, 220*220mm, 300*300mm

Rotary Axis

D69, D80, D100, D125

Software & Additional Function

EZCAD2.0, EZCAD3.0, EZCAD3.0+2.5D+Motorized Z Axis

Product details
Laser Source JPT LP E
Marking Speed 7m/s
Laser Power 20W/30W50W Optional
Adjustable Frequency Range 1-600kHz
Adjustable Pulse Width Range 200ns
Lens(Marking Area) 110×110/150×150/175×175mm
Engraving Depth ≤1.0mm
Min. Character 0.2mm
Min. Line Width 0.01mm
Output power adjustment range 10%-100%
Communication Mode for Automation TCP/IP, IO,RS232
Applicable OS WIN7/8/10
Input Voltage 110V-240V/50-60Hz
