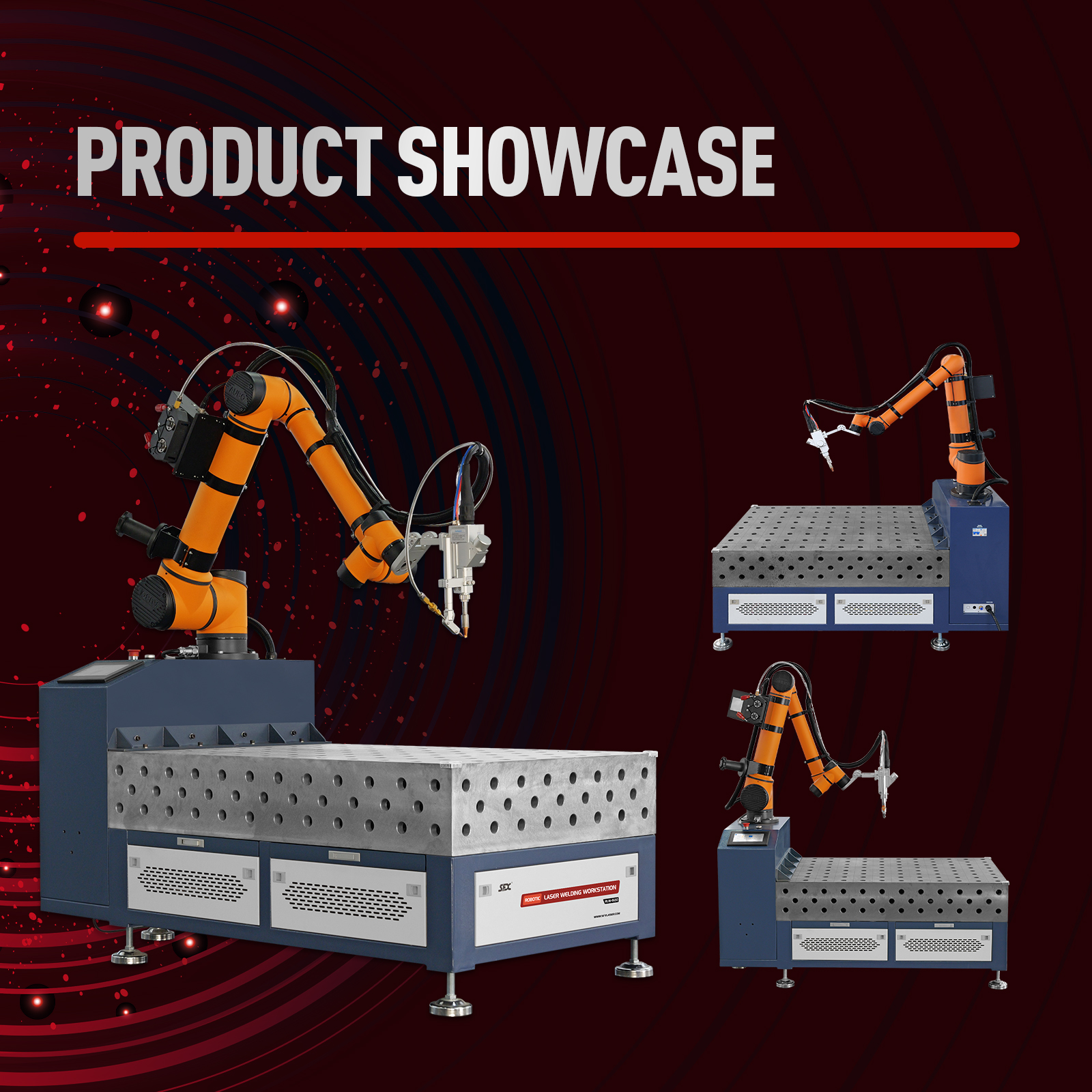

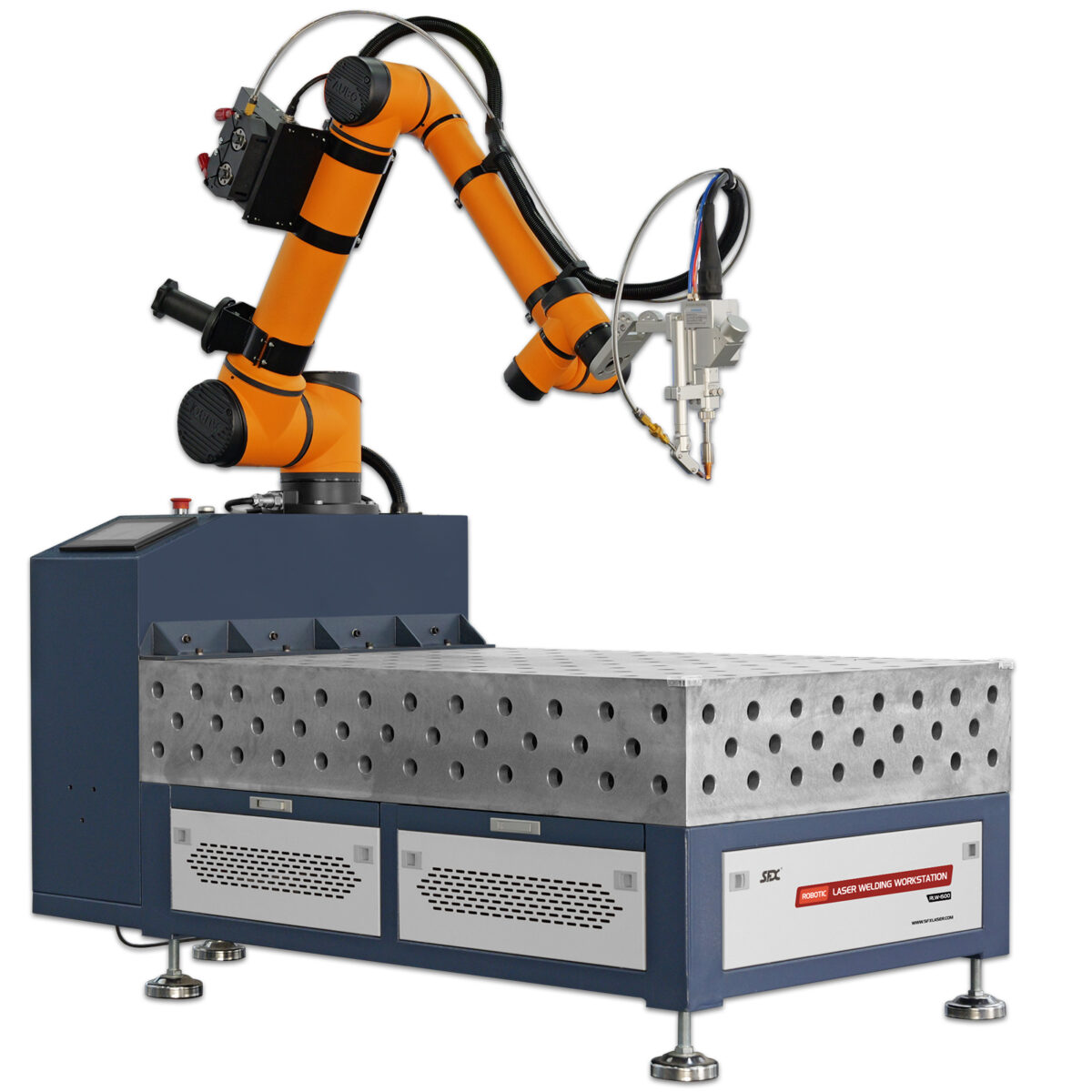

SFX Robotic Laser Welding Workstation is a high-performance six-axis robotic automatic welding machine designed to meet various complex structures and curved surface welding needs.
Its flexible six-axis motion control system enables it to execute complex welding trajectories in three-dimensional space, delivering superior welding results and efficiency.

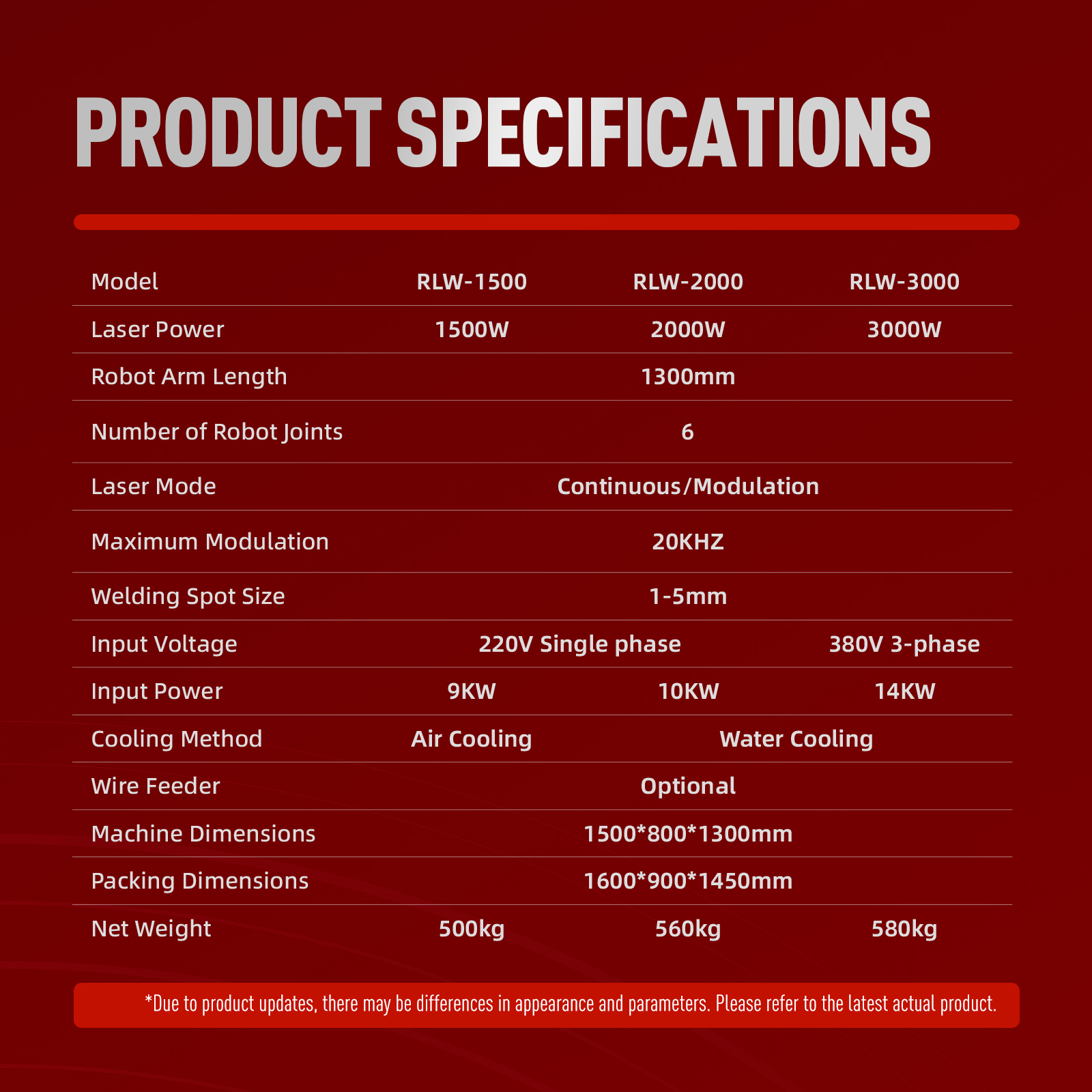

Product Parameters:
- Model: RLW-1500 RLW-2000 RLW-3000
- Laser Power: 1500W 2000W 3000W
- Robot Arm Length: 1300mm
- Number of Robot Joints: 6
- Laser Mode: Continuous/Modulation
- Maximum Modulation: 20KHz
- Welding Spot Size: 1-5mm
- Input Voltage: 220V 1-phase(1500W 2000W) 380V 3-phase(3000W)
- Input Power: 9KW 10KW 14KW
- Cooling Method: Air Cooling Water Cooling
- Wire Feeder: Optional
- Machine Dimensions: 1500*800*1300mm
- Packing Dimensions: 1600mm*900*1450mm
- Net Weight: 500kg 560kg 580kg
Features and Advantages:

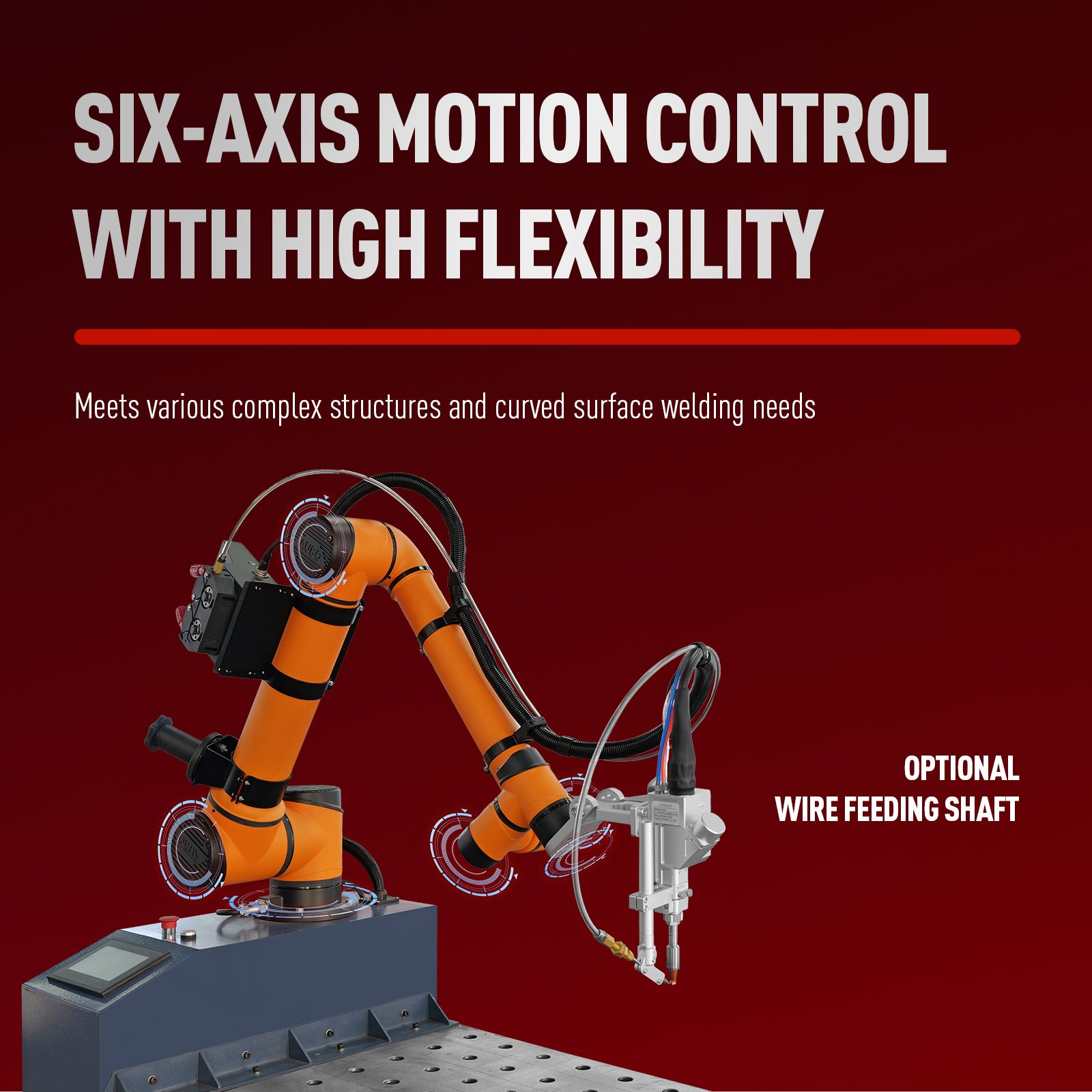

- Six-Axis motion control system, offers high flexibility for various complex and curved surface welding needs.
- Dual swing welding head for high-precision seam positioning and welding, enhancing welding speed and accuracy.
- Drag-and-teach programming, easily set the welding path by manually dragging the robotic arm or moving icons on the graphical interface, ensuring user-friendly operation.
- High repeat positioning accuracy up to ±0.03mm, guarantees stable product quality.

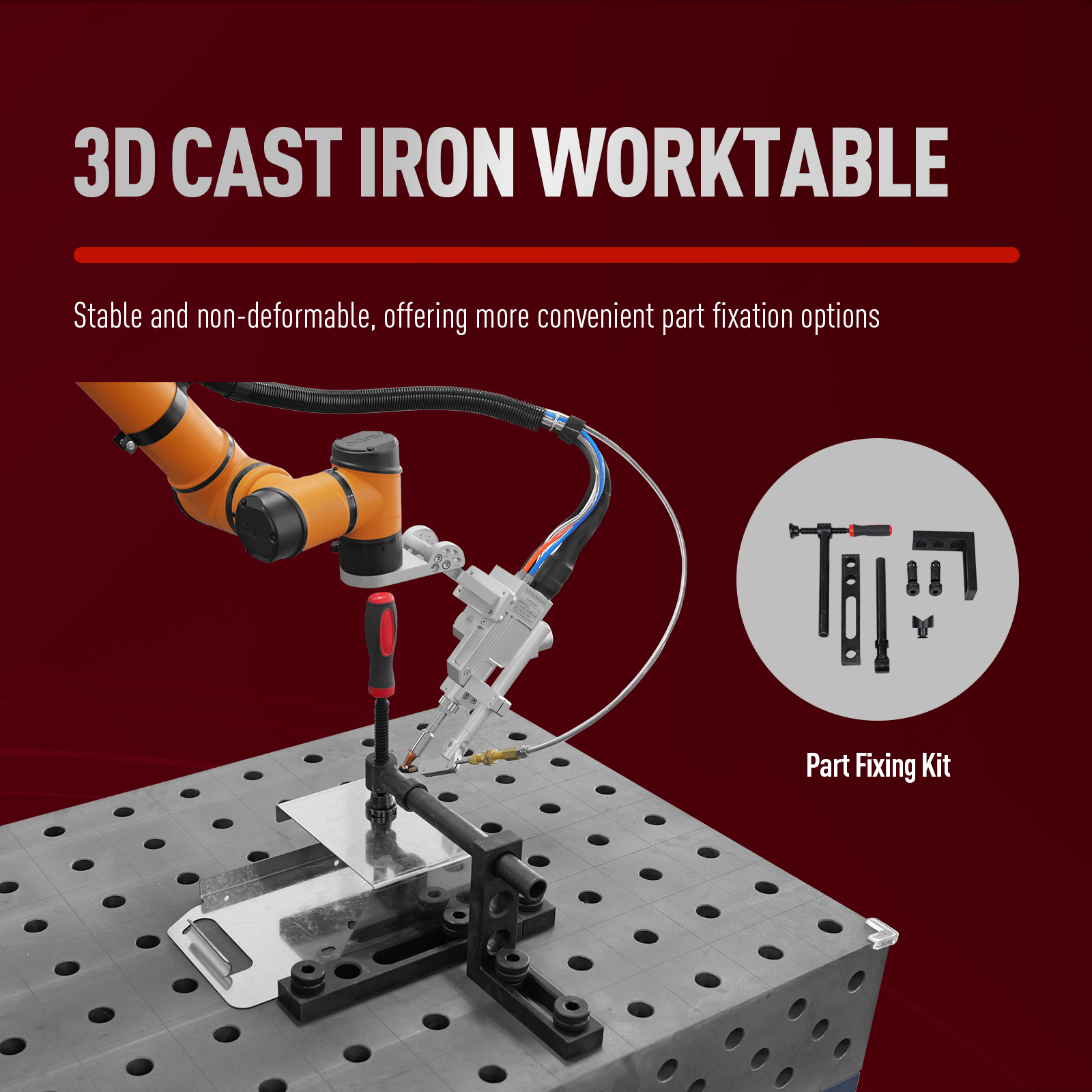

- 3D cast iron worktable, provides a stable and non-deformable surface for convenient part fixation.
- Expandable worktable, the worktable can be expanded into a workstation with a larger operating radius, offering more flexibility in different production scenarios.

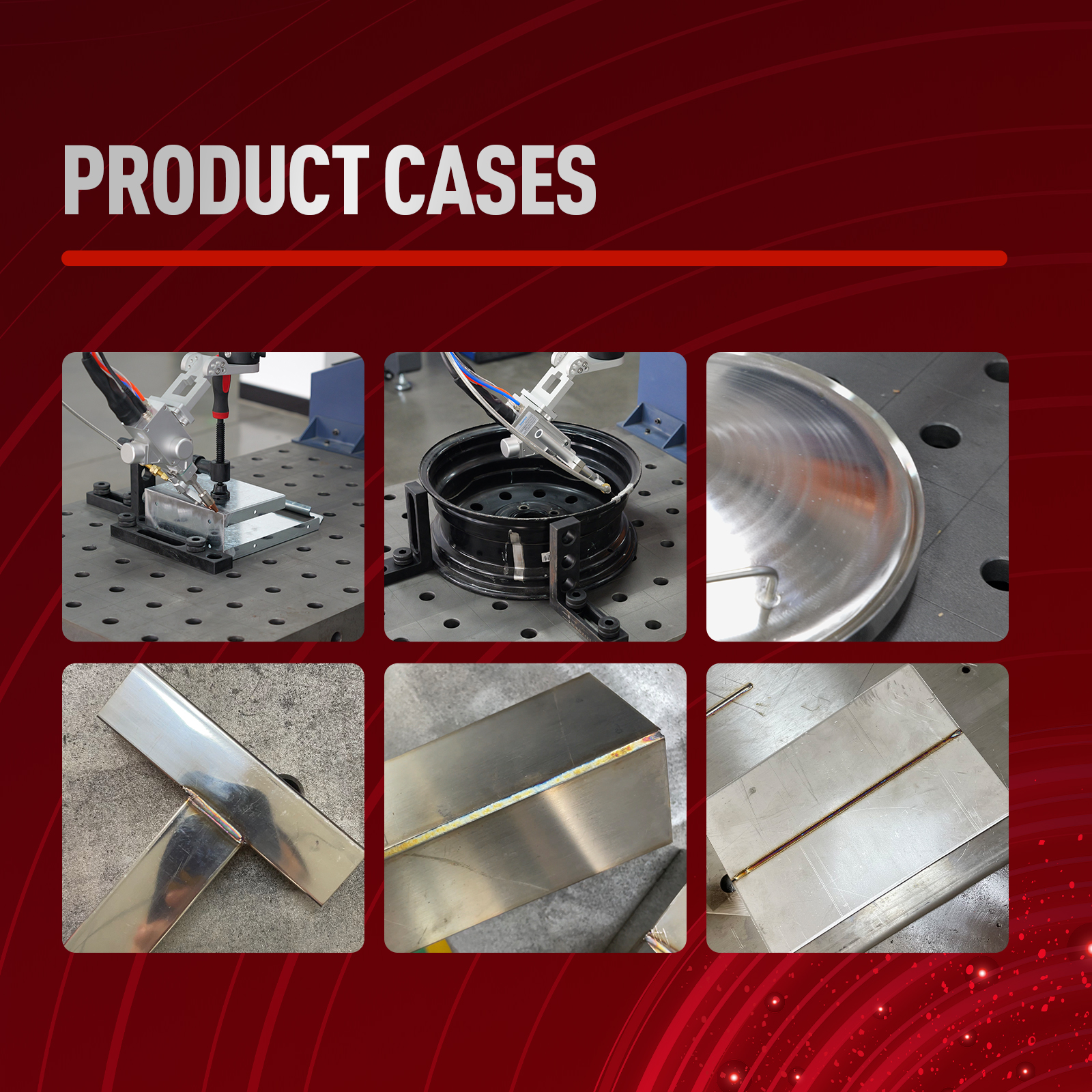

SFX robotic laser welding workstation efficiently handles welding of metals such as stainless steel, mold steel, aluminum alloy, thin copper, and more. It’s ideal for automated welding of hardware accessories, fuel tanks, automotive parts, jacks, sheet metal enclosures, and kitchenware.
Service and Delivery:
- We offer 1 year warranty for the whole machine, 2 years warranty on laser source(consumables not included).
- Free Shipping: 45-60 days delivery to your door by sea. No import duties for America customers.
- 30-day Return Policy: We take full responsibility for every machine we sell. Please buy sfx laser equipment with confidence. (Return & Exchange Policy)
- Our pre-sales technical team offers expert advice to help you choose the right machine, while our after-sales team, certified with five-star service, provides remote support and lifetime online assistance. We also have after-sales centers in NY and CA for local support.
