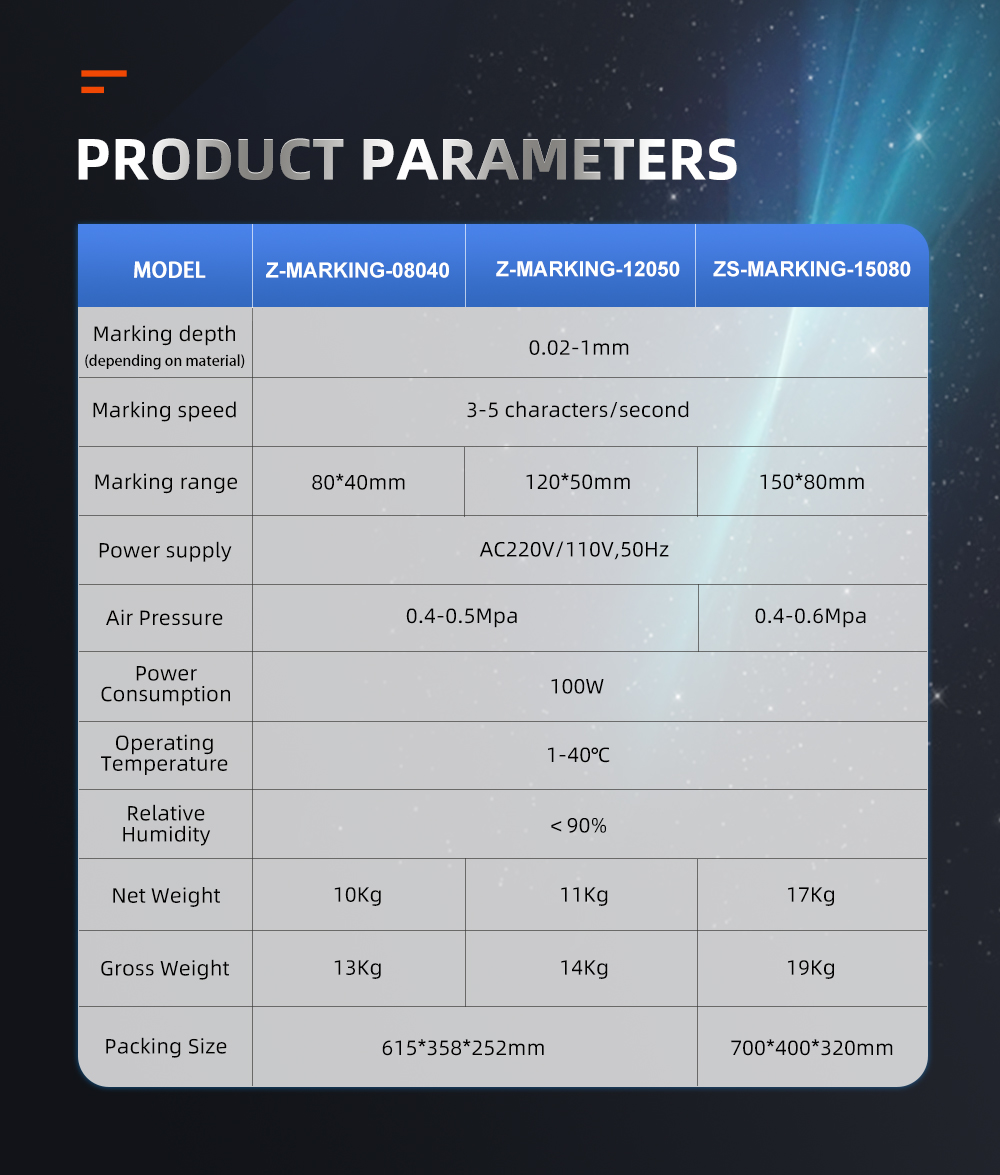

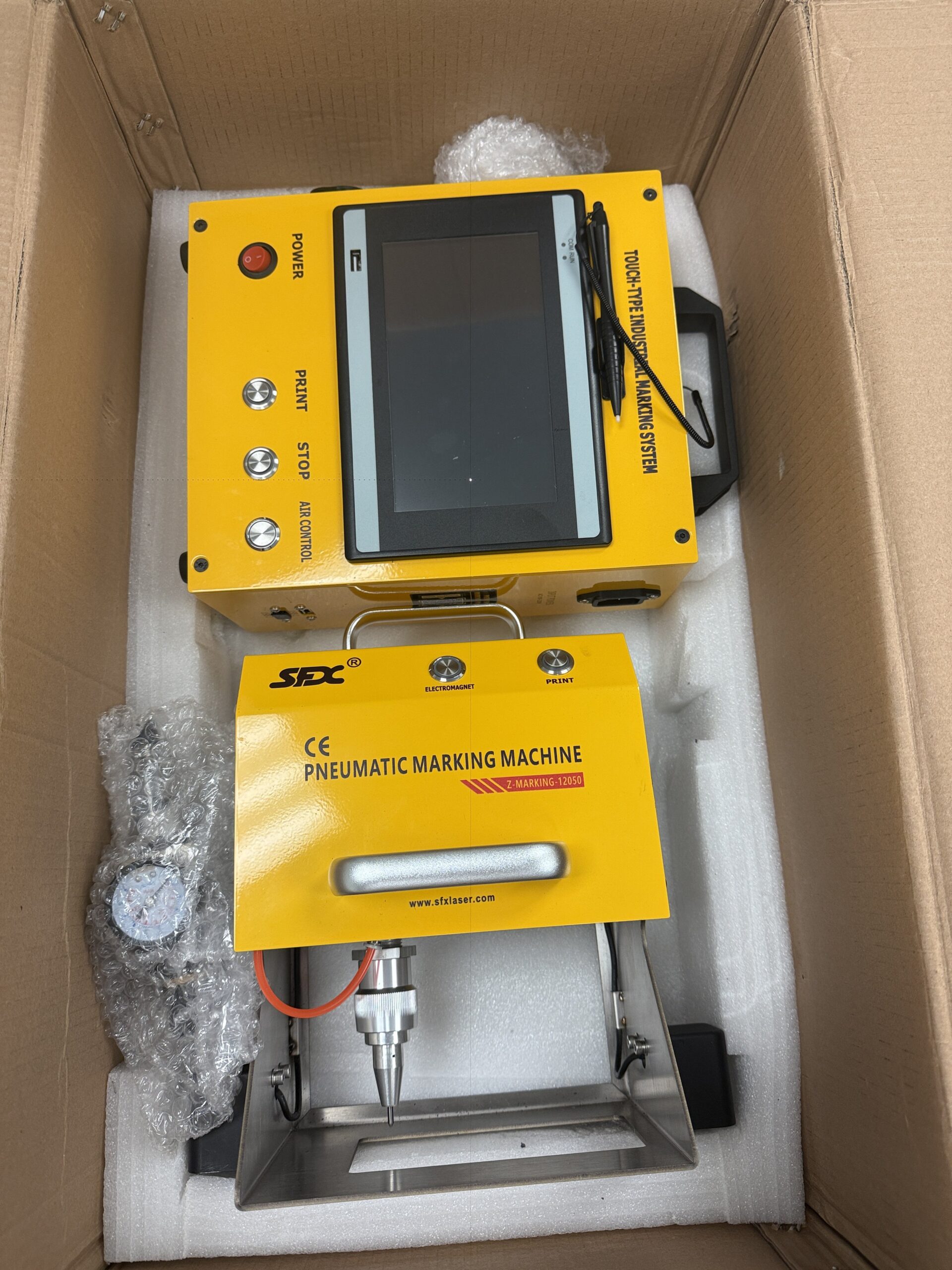

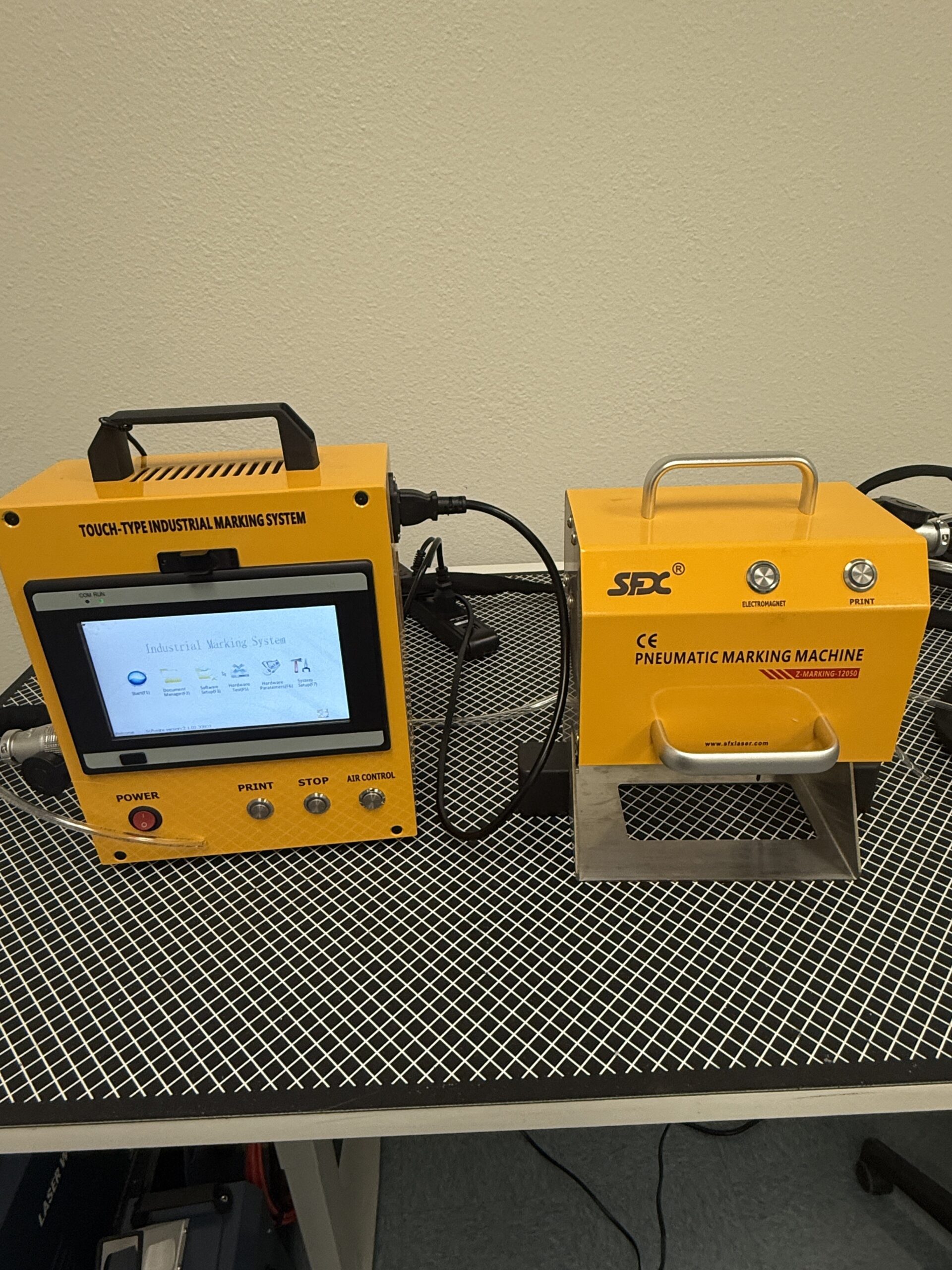

SFX Dot Peen Marking Machine Parameters:
- Model: Z-MARKING-08040, Z-MARKING-12050, ZS-MARKING-15080
- Marking Depth: 0.02-1mm(depending on material)
- Marking Speed: 3-5 Characters/second
- Marking Range: 80*40mm(3.1*1.5in), 120*50mm(4.7*2in), 150*80mm(5.9*3.1in)
- Power Supply: AC110V, 50Hz
- Air Pressure: 0.4-0.5Mpa/0.4-0.6Mpa
- Air Consumption: 3 L/S
- Power Consumption: 100W
- Operating Temperature: 1-40°C
- Relative Humidity <90%
- Net Weight: 10kg/11kg/17kg
Features and Advantages of SFX Dot Peen Marking Machine:

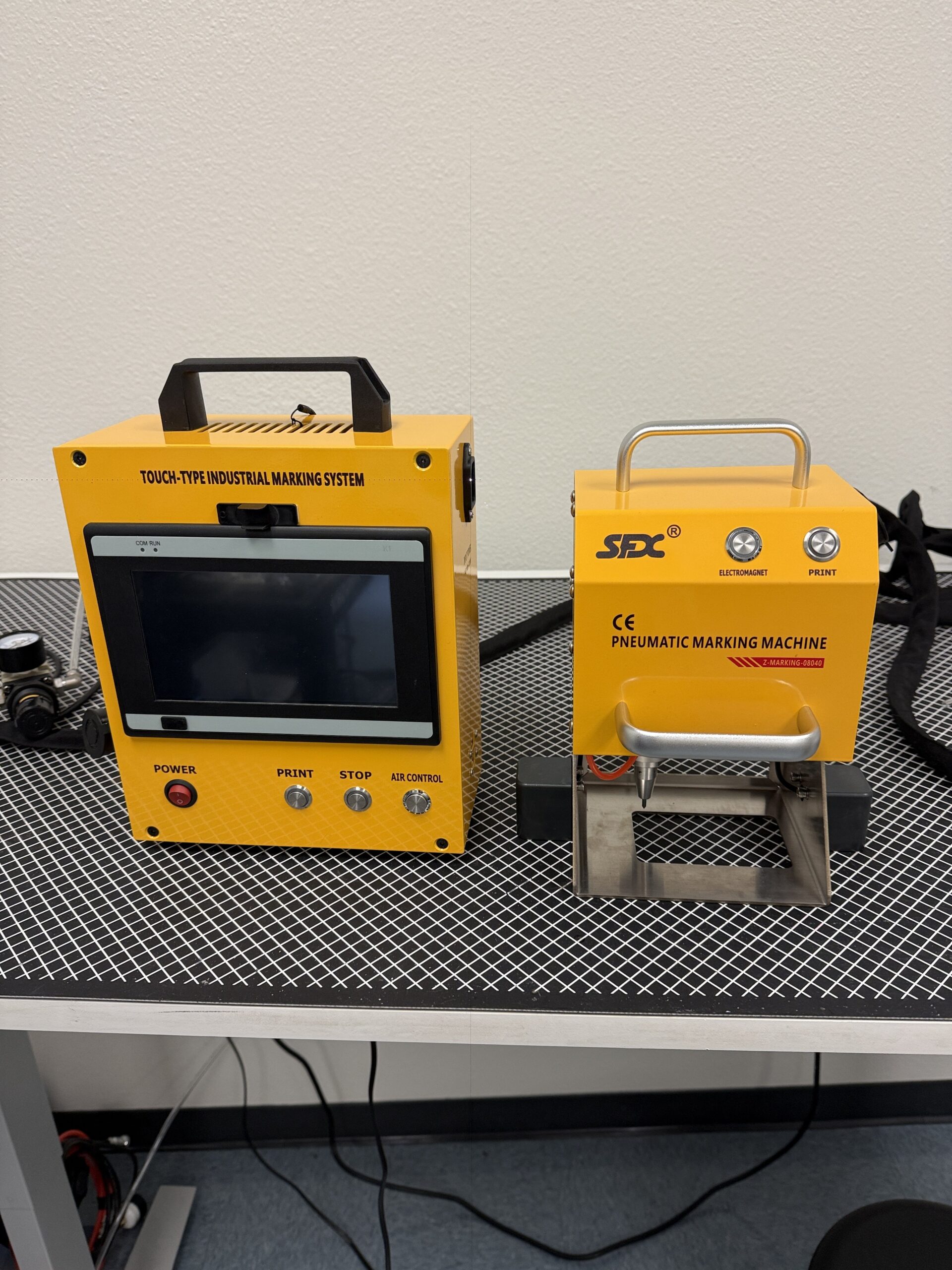

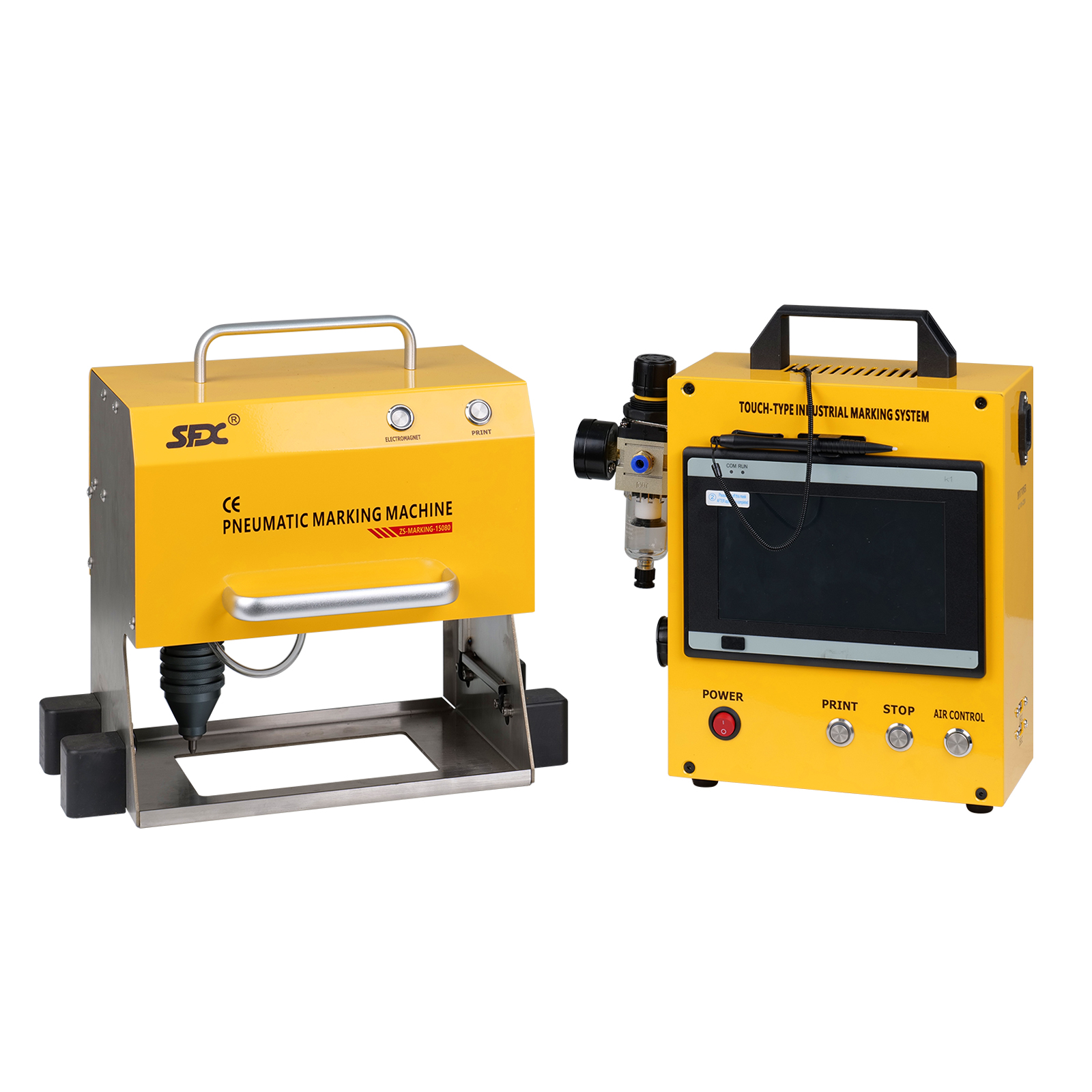

- No computer required, built-in 7-inch Touch Screen Controller. It will start running just by connecting the air source and power supply.

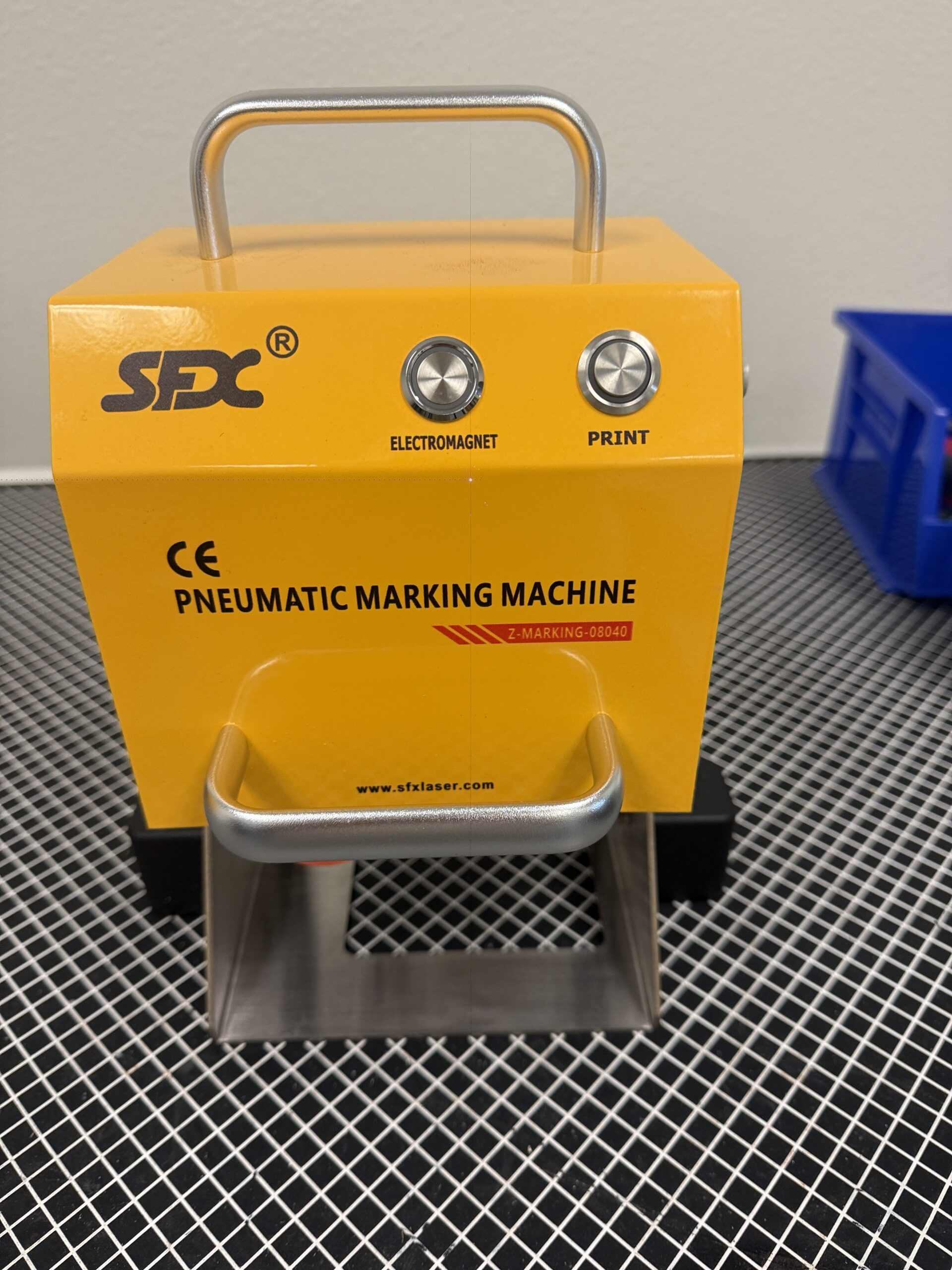

- No need to hold by hand; the dot peen engraver head comes with an electromagnet base that can be firmly attached to the surface of the magnetic workpiece.
- Experiment in the 40°C environment. SFX dot peen marking machine can keep long time with high temperatures. Heat-resistant, stable performance.
- Z-MARKING-08040/12050 dot peen marking machine features a hard alloy marking needle suitable for materials with a hardness less than HRC60.

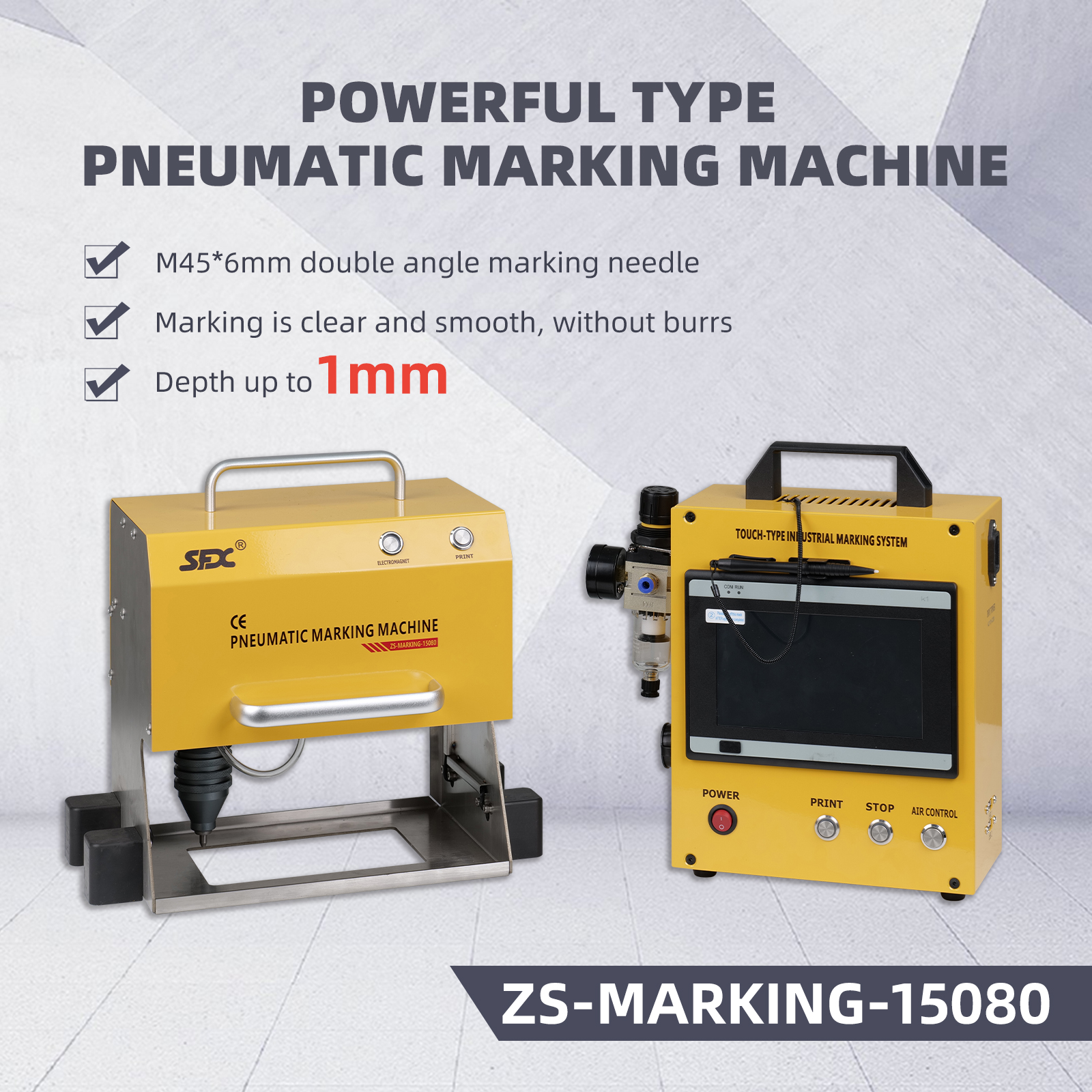

- ZS-MARKING-15080 Powerful type large bold marking needle is suitable for materials with hardness less than HRC65.
- Automatic marking, marks are beautiful. Bilingual English and Chinese operation panel, sfx dot peen marking machine can be used for marking fixed characters, serial numbers, VIN, date, graphics, and other marks.
Application and Service:
- SFX Dot Peen Marking Machine can be used for All Kinds of Signs, Metal Accessories, Stainless Steel, Copper, Iron, Aluminum, Electronic Sensors, Transformers, and Other Electronic Components etc.
- 1-year warranty. Stock available now in our CA warehouse, Free shipping to your door in about 3-7 days. No import duty for American customers. CE Certificate, Hot sale in 80+ countries.
- Carbide Pneumatic Marking Machine Needle for Optional.
