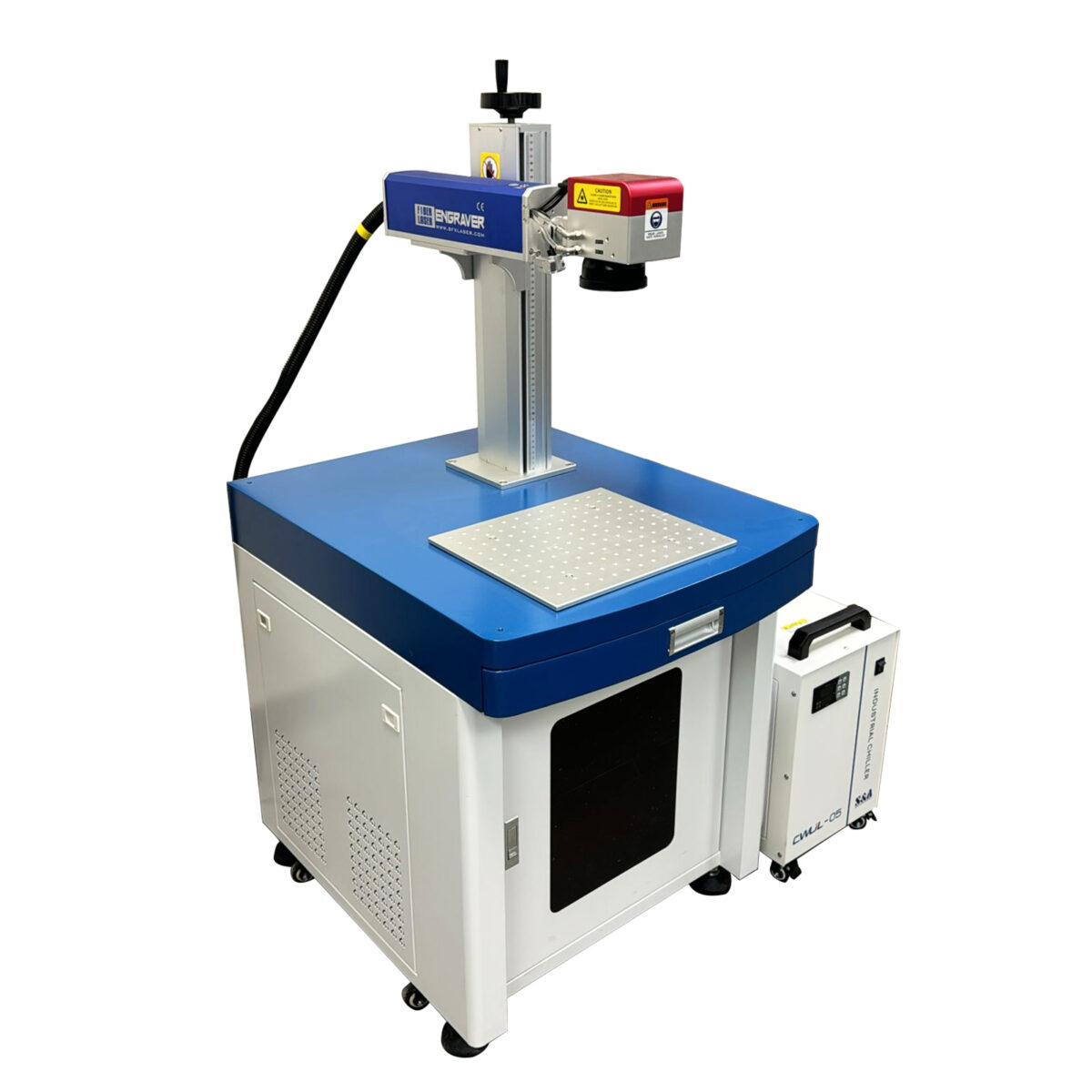

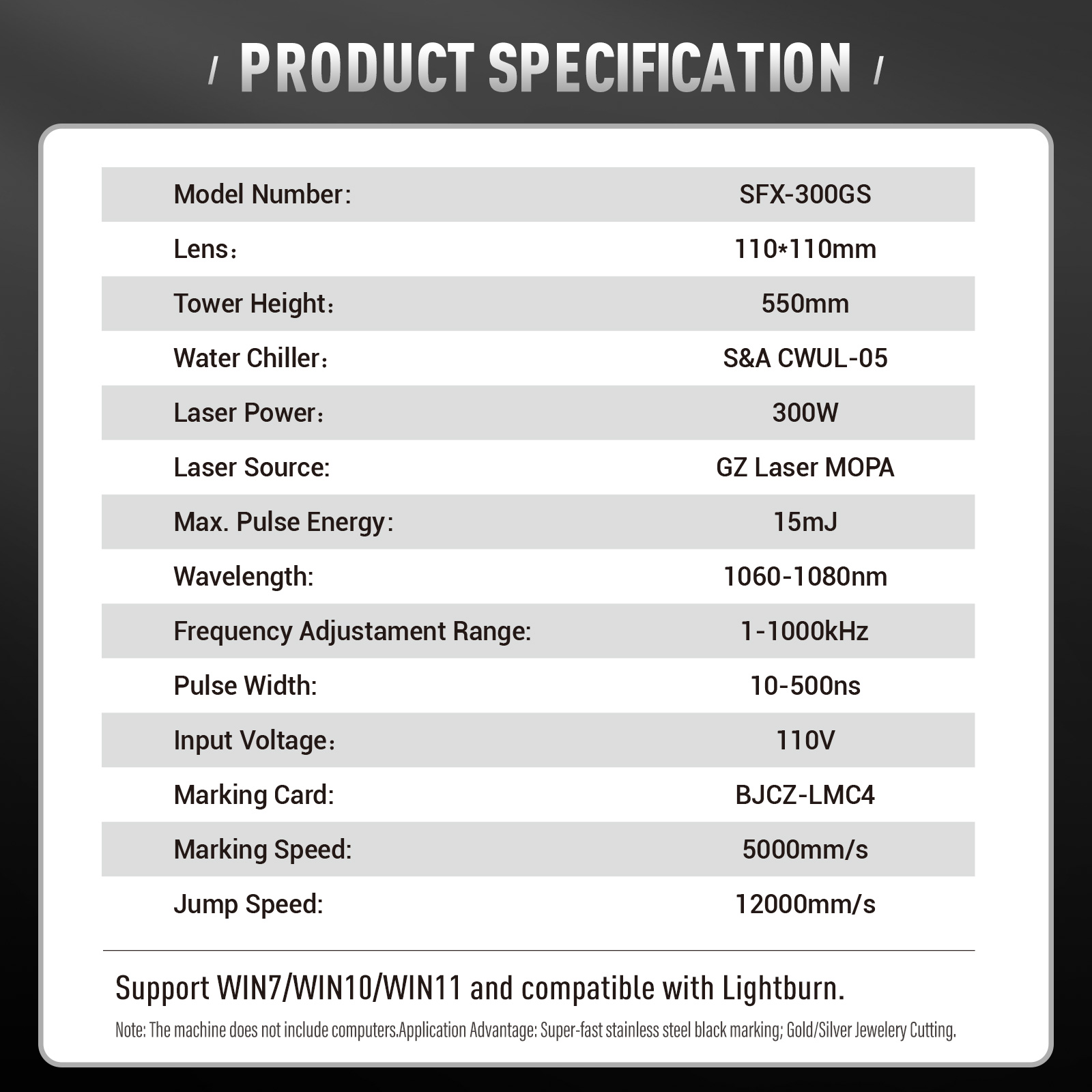

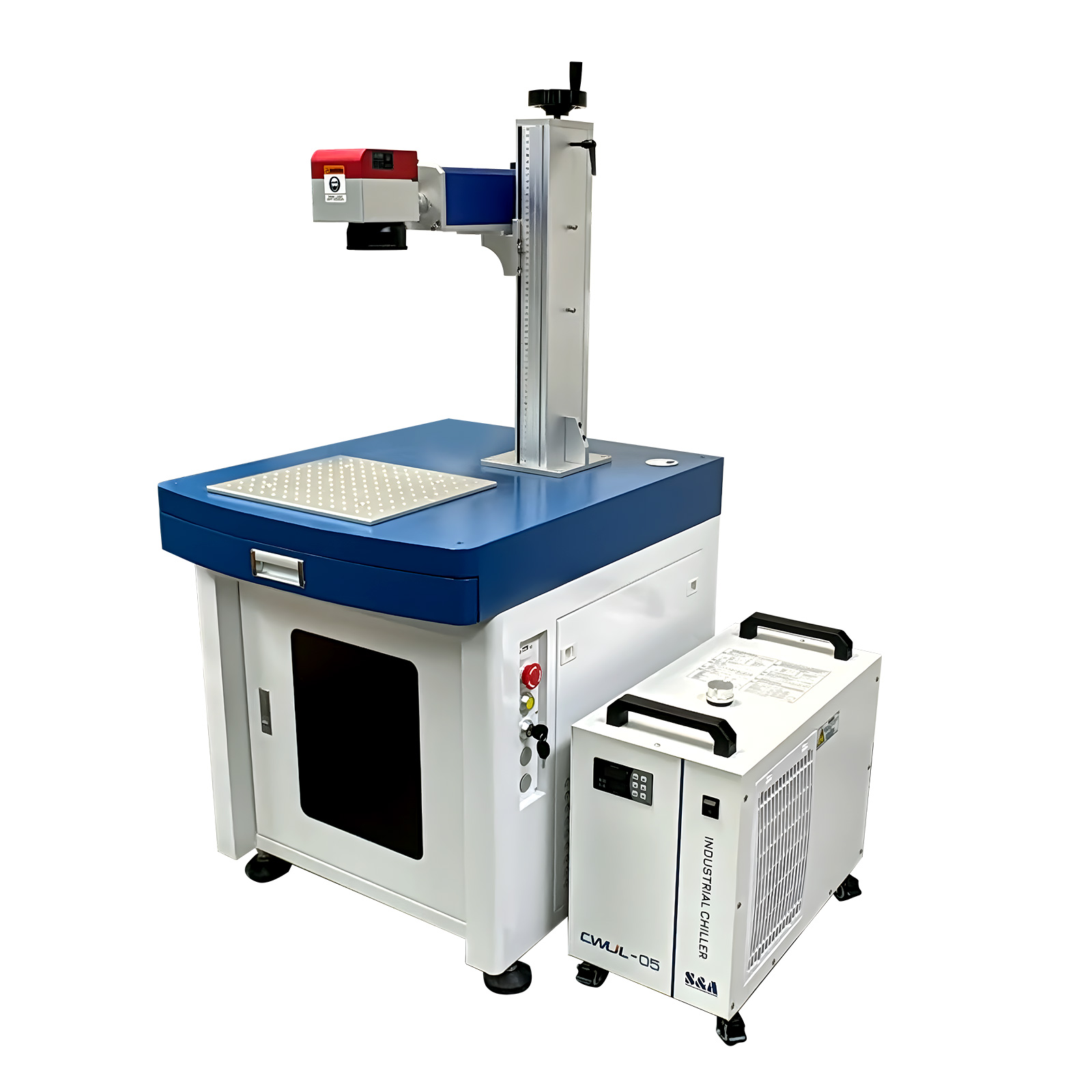

SFX 300W Desktop Fiber Laser Marking Machine Parameters:
- Model: SFX-300GS
- Lens: 110*110mm
- Tower Height: 550mm
- Water Chiller: S&A CWUL-05
- Laser Power: 300W
- Laser Source: GZ Laser MOPA
- Max. Pulse Energy: 15mJ
- Wavelength: 1060-1080nm
- Frequency Adjustament Range: 1-1000kHz
- Pulse Width: 10-500ns
- Input Voltage: 110V
- Marking Card: BJCZ-LMC4
- Marking Speed: 5000mm/s
- Jump Speed: 12000mm/s
300W MOPA Fiber Laser Engraver Features and Advantages:

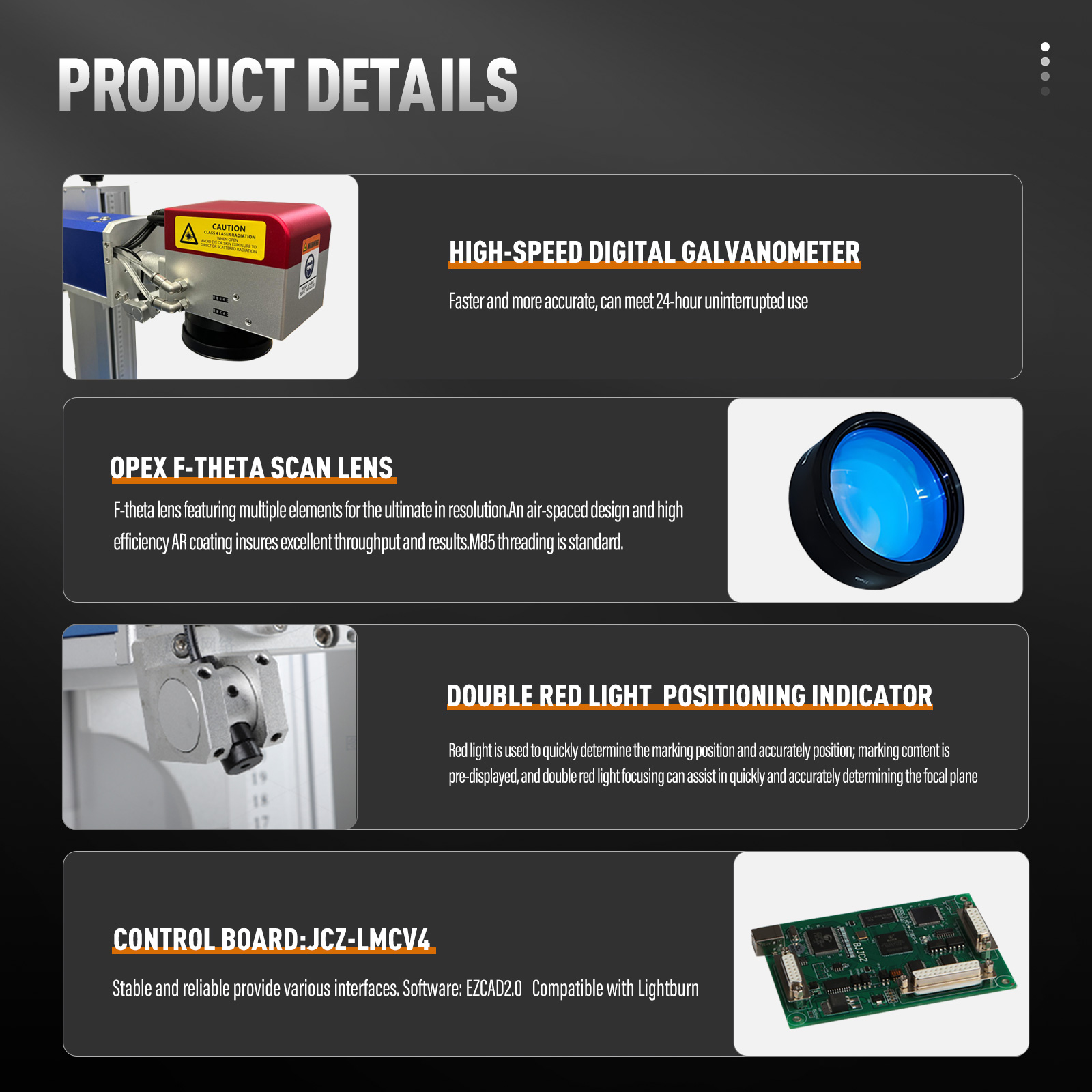

- High-speed digital galvanometer, faster and more accurate, can meet 24-hour uninterrupted use.
OPEX F-theta scan lens. F-theta lens featuring multiple elements for the ultimate in resolution.
An air-spaced design and high efficiency AR coating insures excellent throughput and results.
M85 threading is standard.
- Double red light positioning indicator.
Red light is used to quickly determine the marking position and accurately position; marking content is pre-displayed, and double red light focusing can assist in quickly and accurately determining the focal plane.
- Control Board: JCZ-LMCV4
Stable and reliable provide various interfaces. Software: EZCAD2.0 compatible with lightburn.
- Support Win7/Win10/Win11 and compatible with lightburn.
Application and Service:
- Applicable Materials: Aluminum, Stainless Steel, Brass, Copper, etc. Also Some of Nonmetal Such as Nylon, Light Button, ABS, PVC, PES, etc.
- Applicable Industry: Hardware Industry, Wrenches, Measuring Tools, Sanitary Ware, Stainless Steel, Medical Equipment, Luggage, Gifts, Table Bottom, Glasses Frames, Instruments.
- Application Advantage: Super-fast stainless steel black marking; Gold/Silver Jewelry Cutting.
- 2 Years Warranty. After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. Offer Lifetime Online Technical Support.
