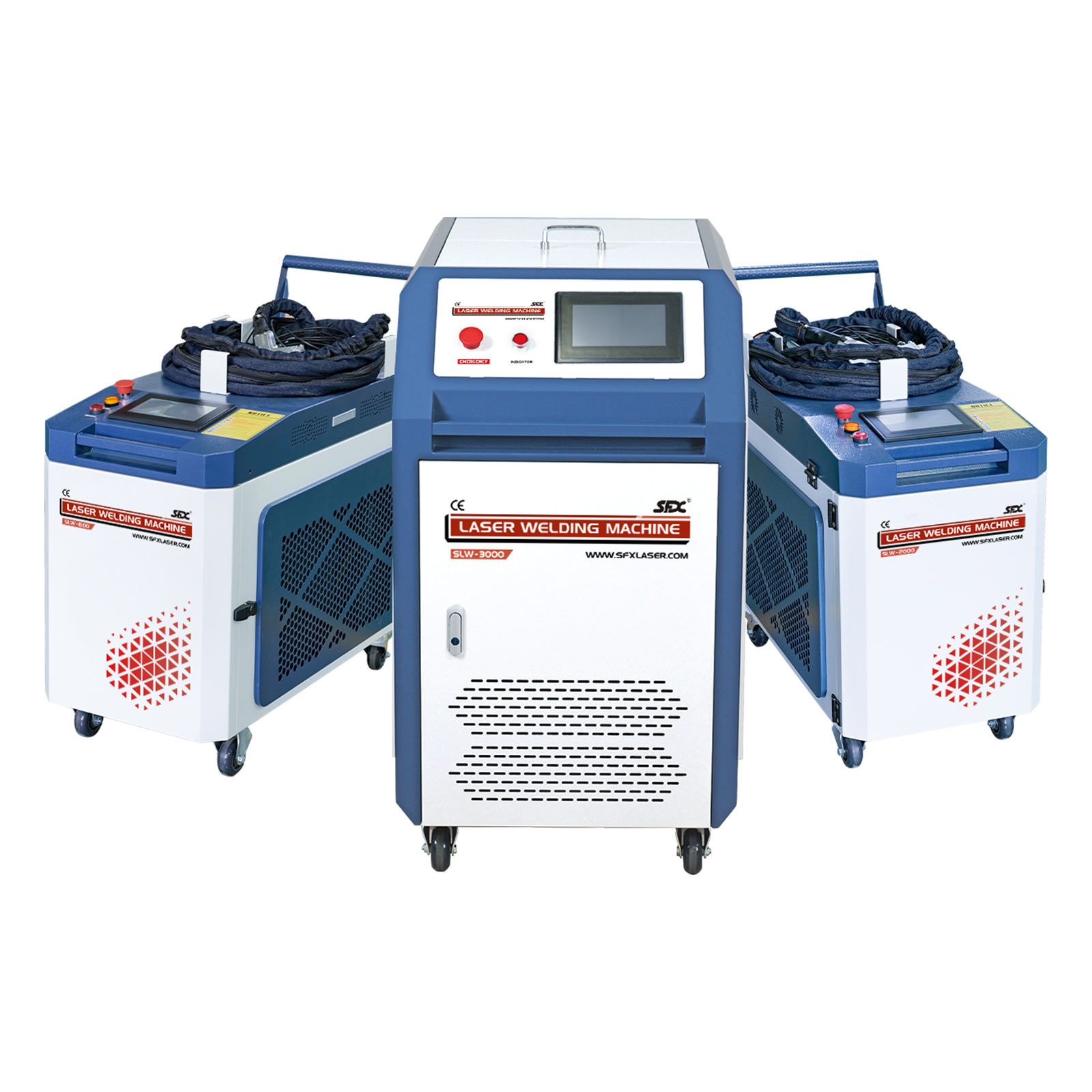

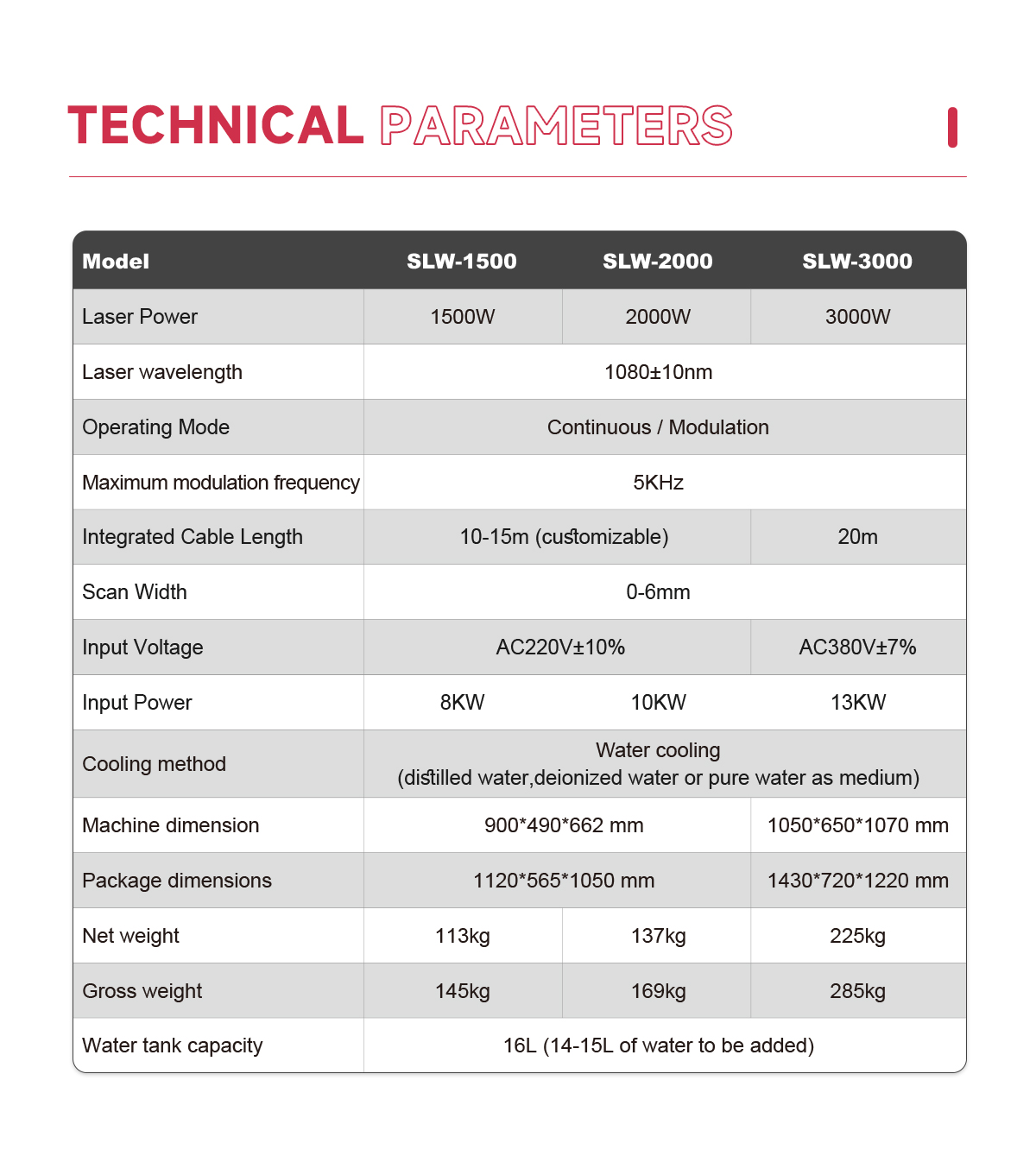

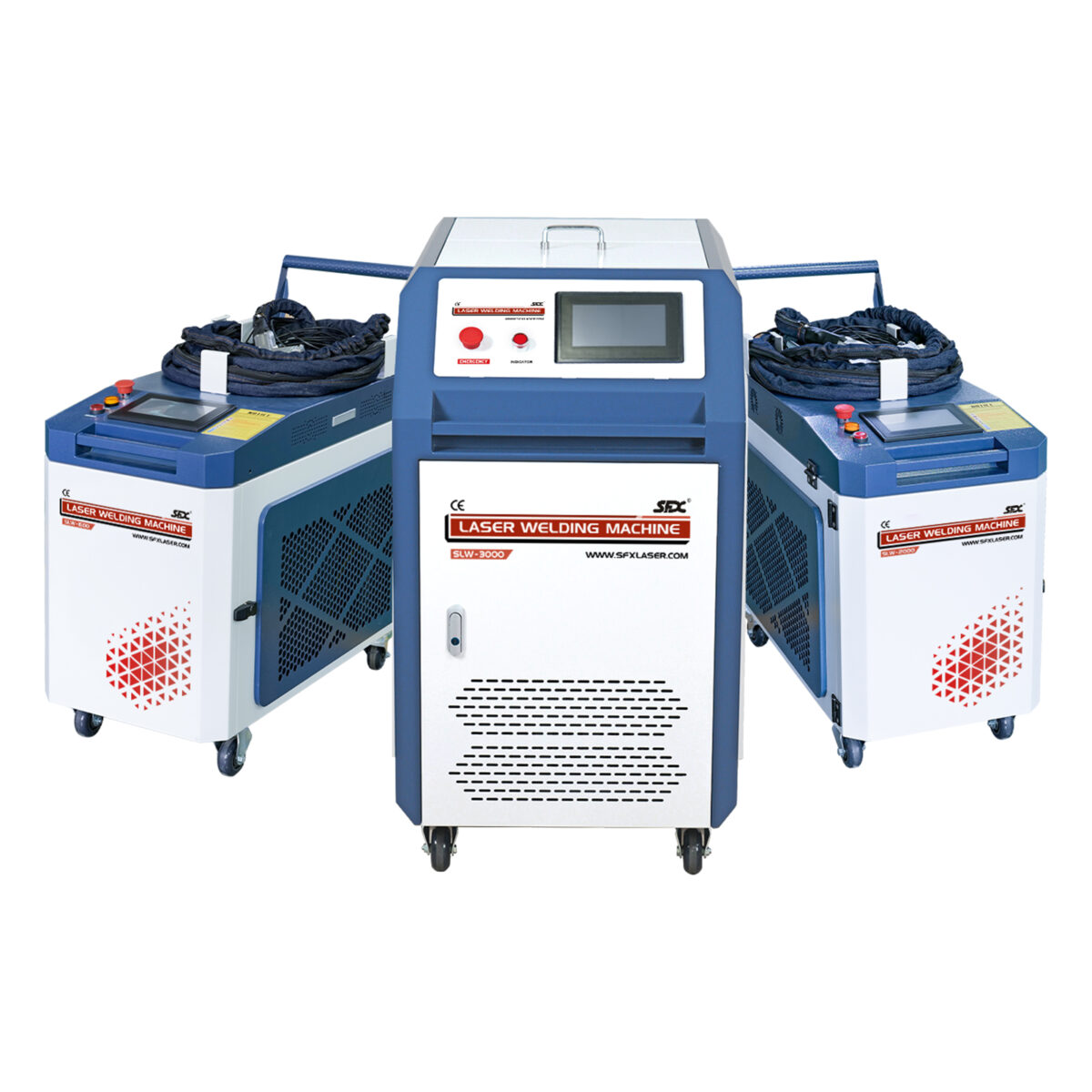

SFX 2-in-1 Laser Welder Technical Parameters:
- Model: SLW-1500 SLW-2000 SLW-3000
- Laser Wavelength: 1080±10nm
- Laser Power: 1500W/2000W/3000W
- Operation Mode: Continuous/Modulation
- Cable Length: Standard 10-15m (customizable); 3000W Standard 20m
- Max Modulation Frequency: 5KHz
- Scan Width: 0-6mm
- Cooling Method: Water Cooling
- Visual Positioning: Red Dot
- Input Voltage: AC220V±10% 1-phase(1500W/2000W); AC380V±7% 3-phase(3000W Transformer included
- Water Tank Capacity: 16L (14-15L of Water to be Added)
Features and Advantages of SFX Laser Welding Machine:

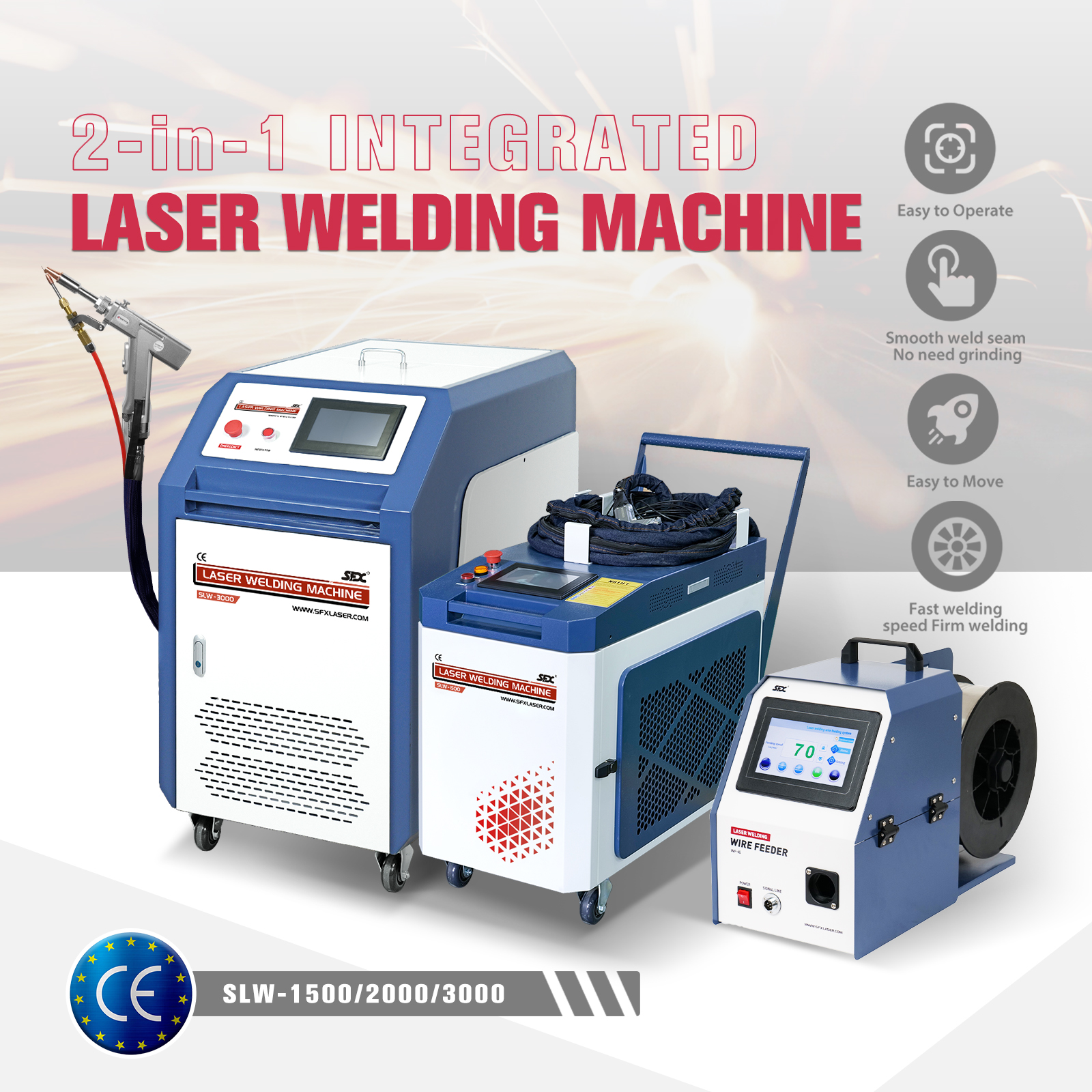

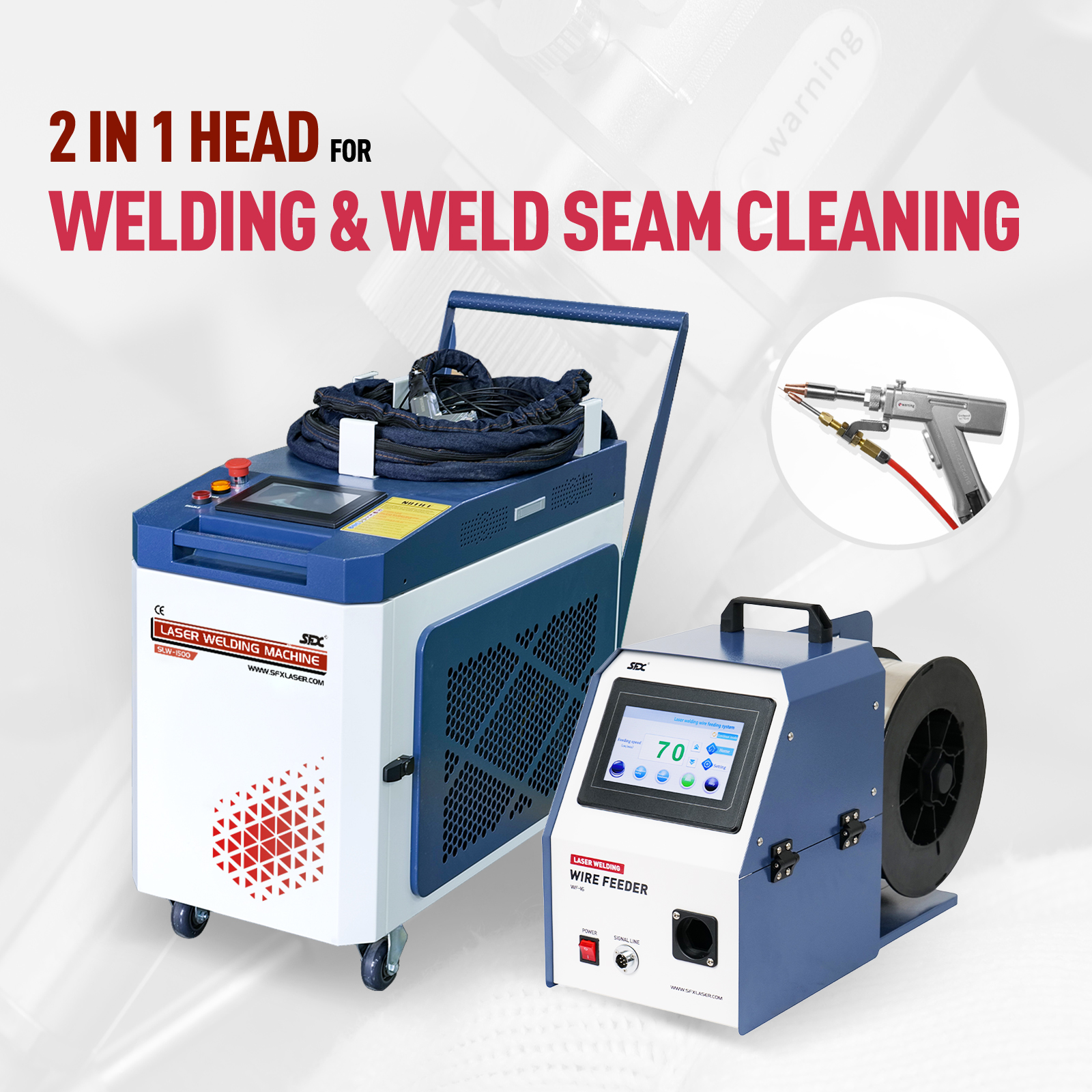

- 2 In 1 laser welding machine for metal welding & weld seam cleaning. Smaller size and lighter weight. Gun head weight only about 750g.
- Gun head warning function. It will light up, alarm and stop when the lens dirty or damaged. Double protection of machine and welding workpiece.
- Integrated design of the welding head significantly reduces the failure rate.
- One click switch to the weld seam cleaning process after changing the welding nozzle, no need to shut down and replace the system. Easy operation.

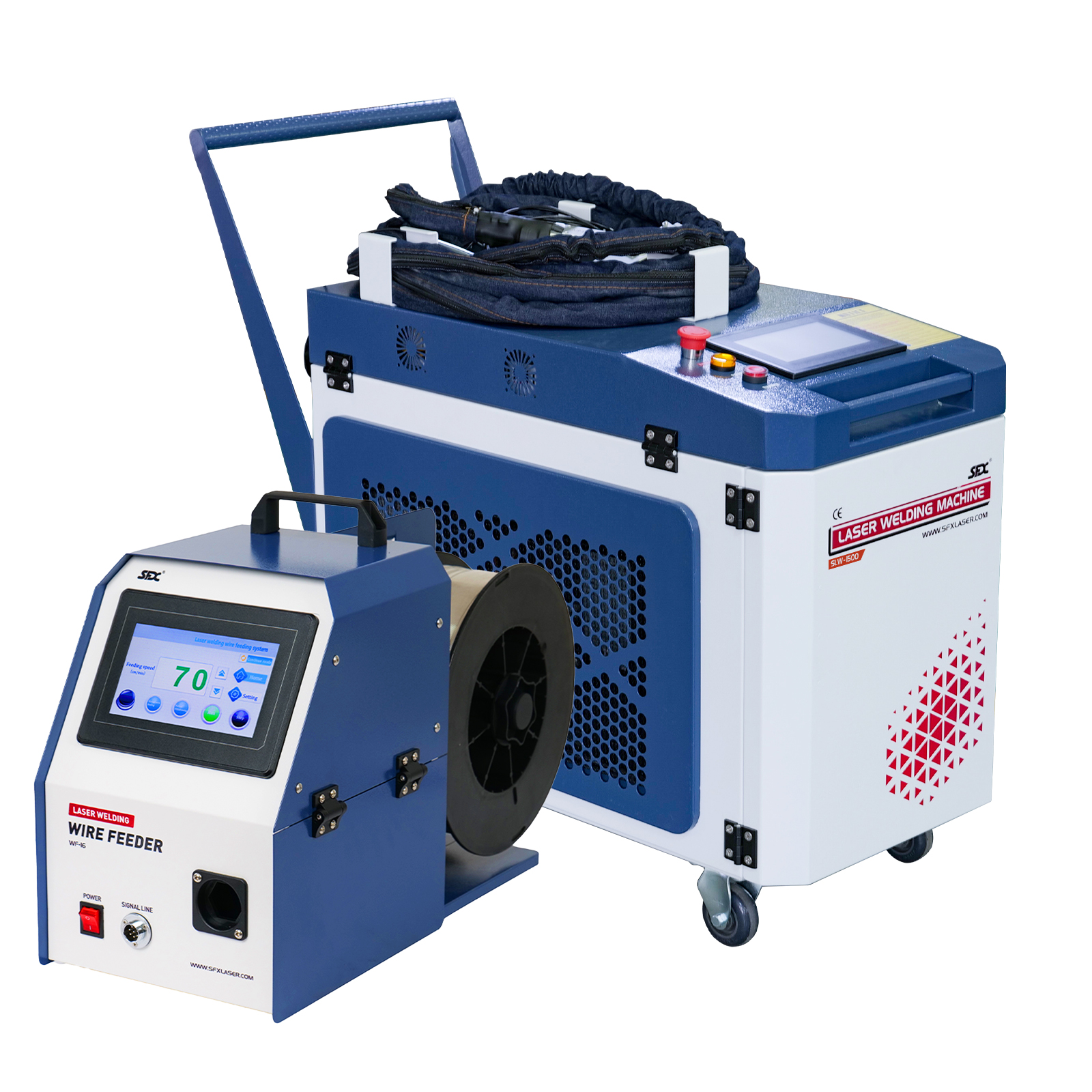

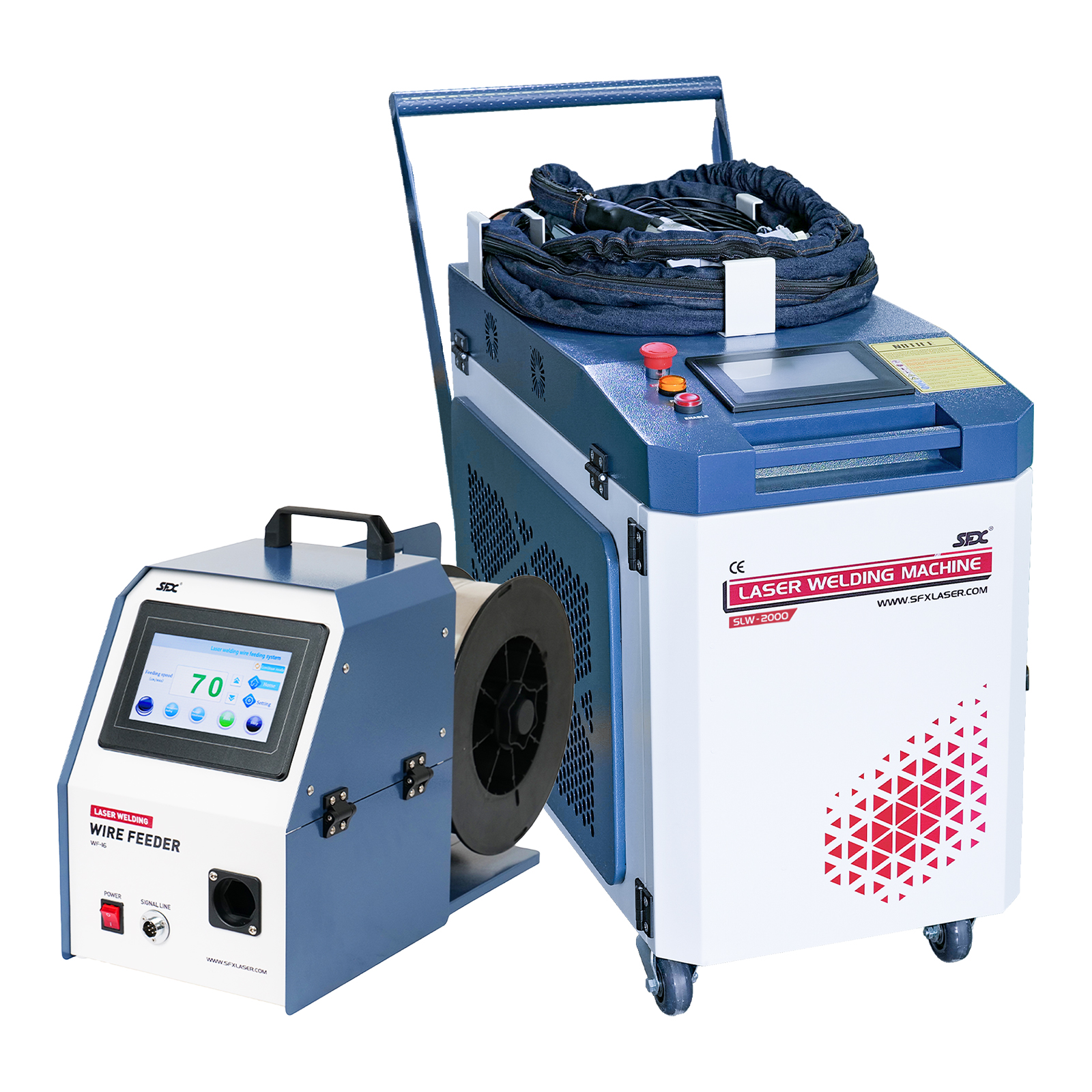

- MAX brand Laser Source. High stability, power saving and basically maintenance-free. Smart control panel. Auto wire feeder included.
- Light and flexible handheld welding head for welding at any angle. Pure copper welding nozzle, Integrated gas protection system.
- Integrated water-cooler chassis, thickened sheet metal structure. Small volume(BLW-1500:0.23m³; BLW-2000:0.28m³), easy to put in a car.
- Ergonomic design. easy to push. Self-adaptive speed fan. Direct cooling and heat dissipation, high efficiency and energy saving. Compact structure, simple maintenance.
- Welded firmly, fast welding speed, efficiency is 3-8 times that of argon arc welding. Weld seam is smooth and even, deep molten pool, high strength.
- CE Certificate, passed many rigorous tests (such as continuous working test, high contamination test, etc.) in the industry.
Application and Service:
- Applicable to various metals and alloys such as stainless steel, carbon steel, aluminum, gold, silver, chromium, nickel, titanium, etc. Copper welding is not suitable, you can consider our 1200w portable laser cleaning machine

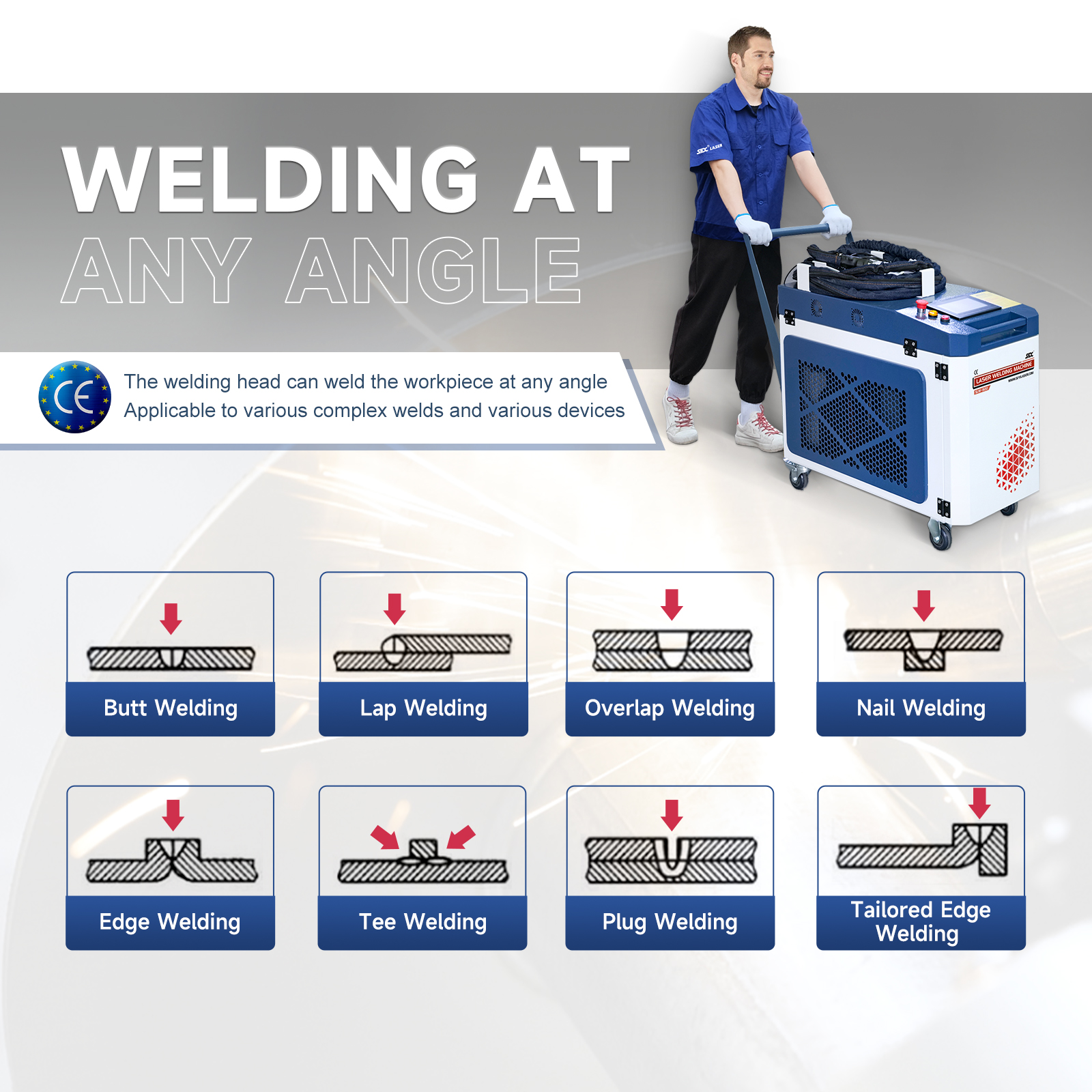

- SFX 2 in 1 laser welding machine can be used for butt welding, lap welding, overlap welding, nail welding, edge welding, tee welding, plug welding, tailored edge welding.
- It is widely used in the complicated and irregular welding processes of cabinets and kitchens, stair lifts, shelves, ovens, stainless steel doors and windows guardrails, distribution boxes, stainless steel furniture, metal sheet metal and other industries.
- 1 Year Warranty for the Whole 2-in-1 Laser Welding Machine, 2 Years Warranty for the Laser Source. (Consumables are not covered by warranty)
- After sales center in NY, US. Offer remote assistance for operation issues. Lifetime online technical support. Free Shipping to door.
