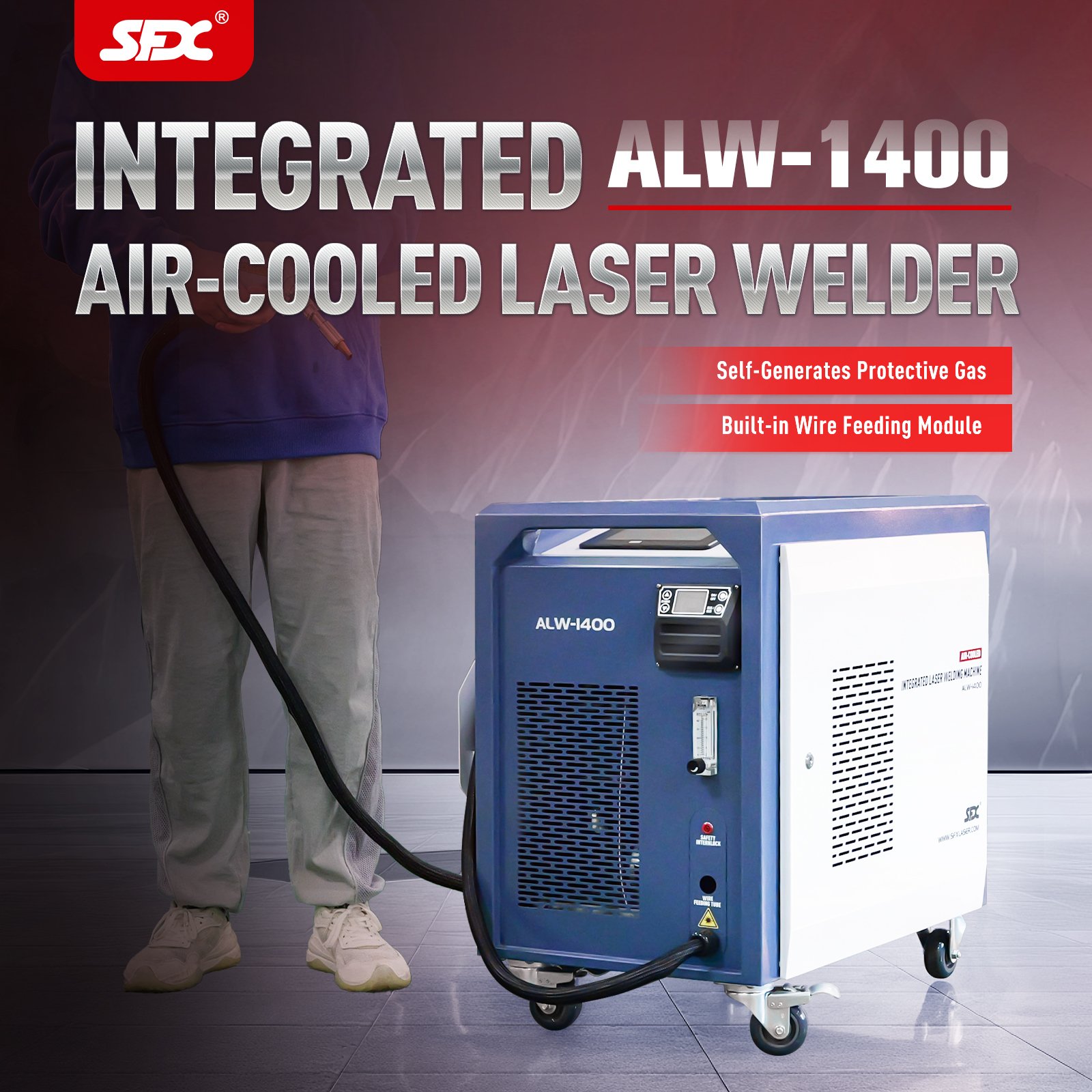

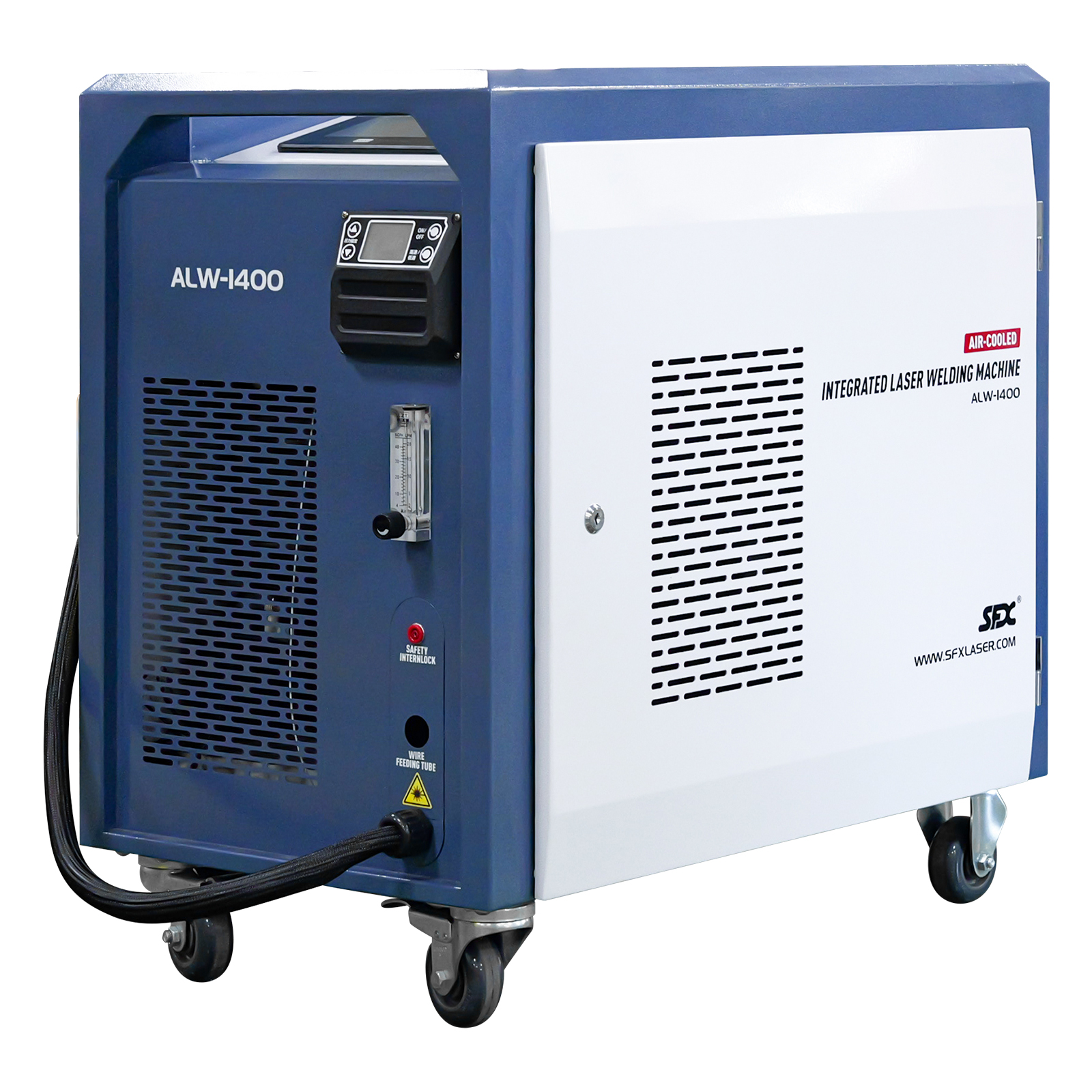

SFX 1400W Integrated Air-cooled Laser Welding Machine ALW-1400 Handheld Metal Laser Welder

SFX ALW-1400 Air-cooled Laser Welding Machine Technical Parameters:

• Model: ALW-1400
• Rated Power: 5KW
• Welding Width: 0-5mm
• Machine Volume: 0.37m³
• Weld Gun Weight: 650g
• Input Voltage: 220V±10%, 20A, 50Hz/60Hz
• Operating Environment Temperature: -10~40°C
• Applicable Welding Wire Diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm
• Operating Mode: Continuous/Pulsed/Modulation/Linear/Timing mode
• Machine Dimension: 850*550*750mm
• Gross Weight: 94kg

Features and Advantages of ALW-1400 Air-cooled Laser Welder:

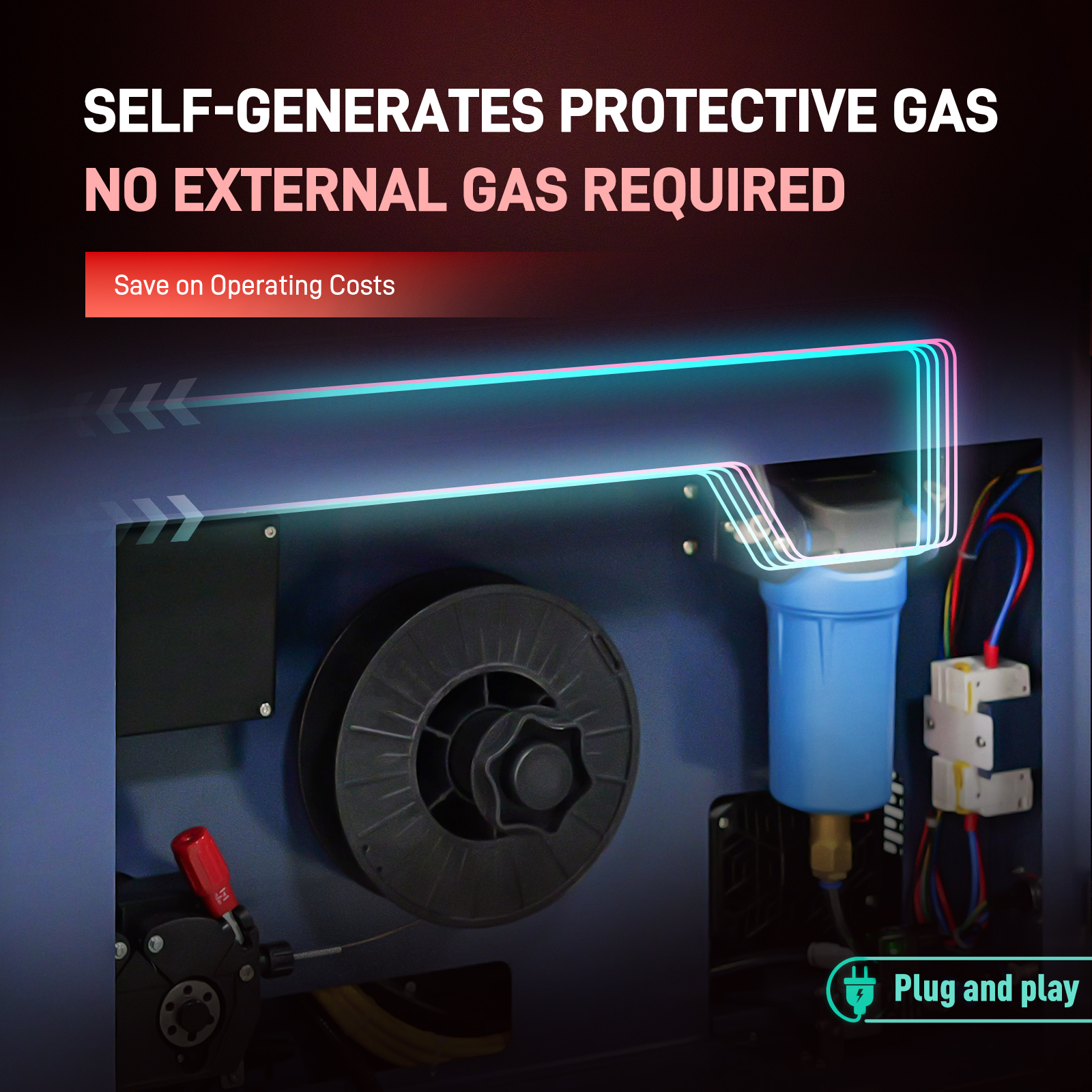

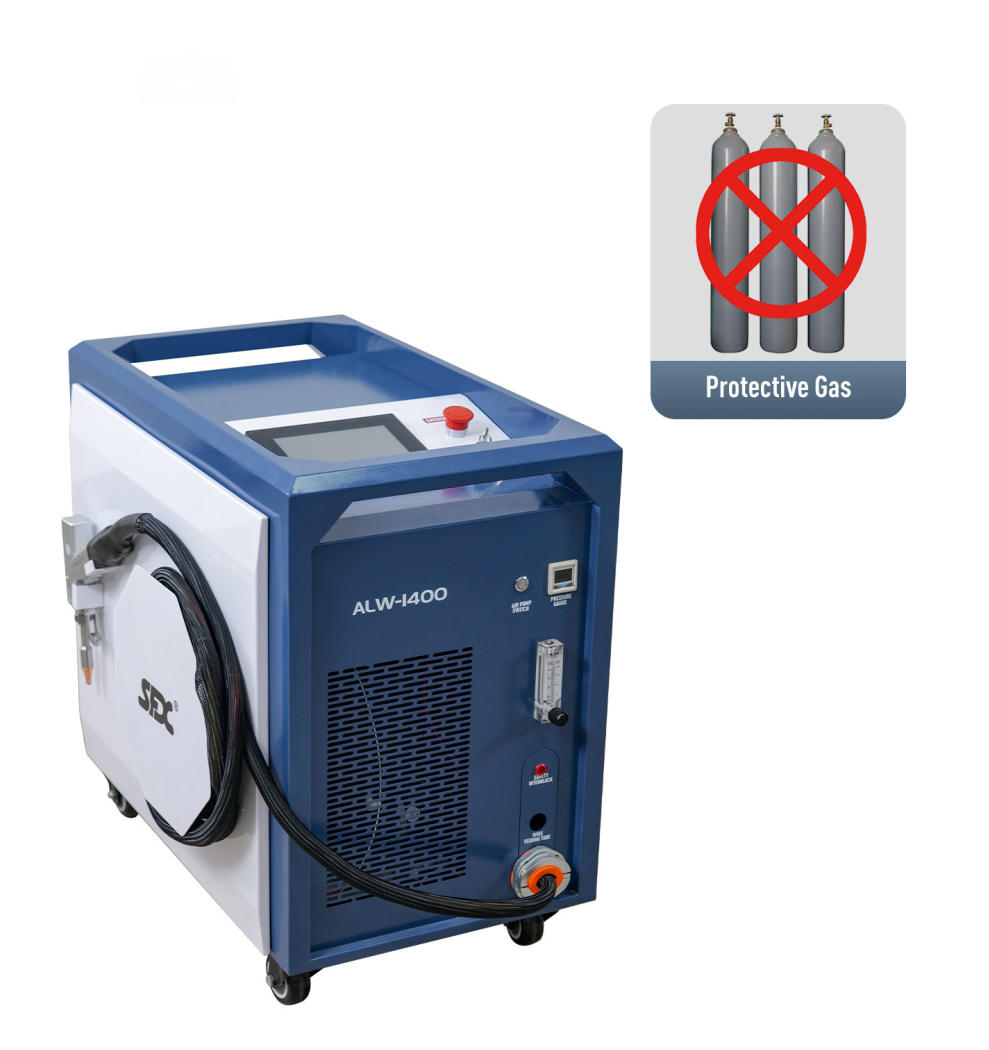

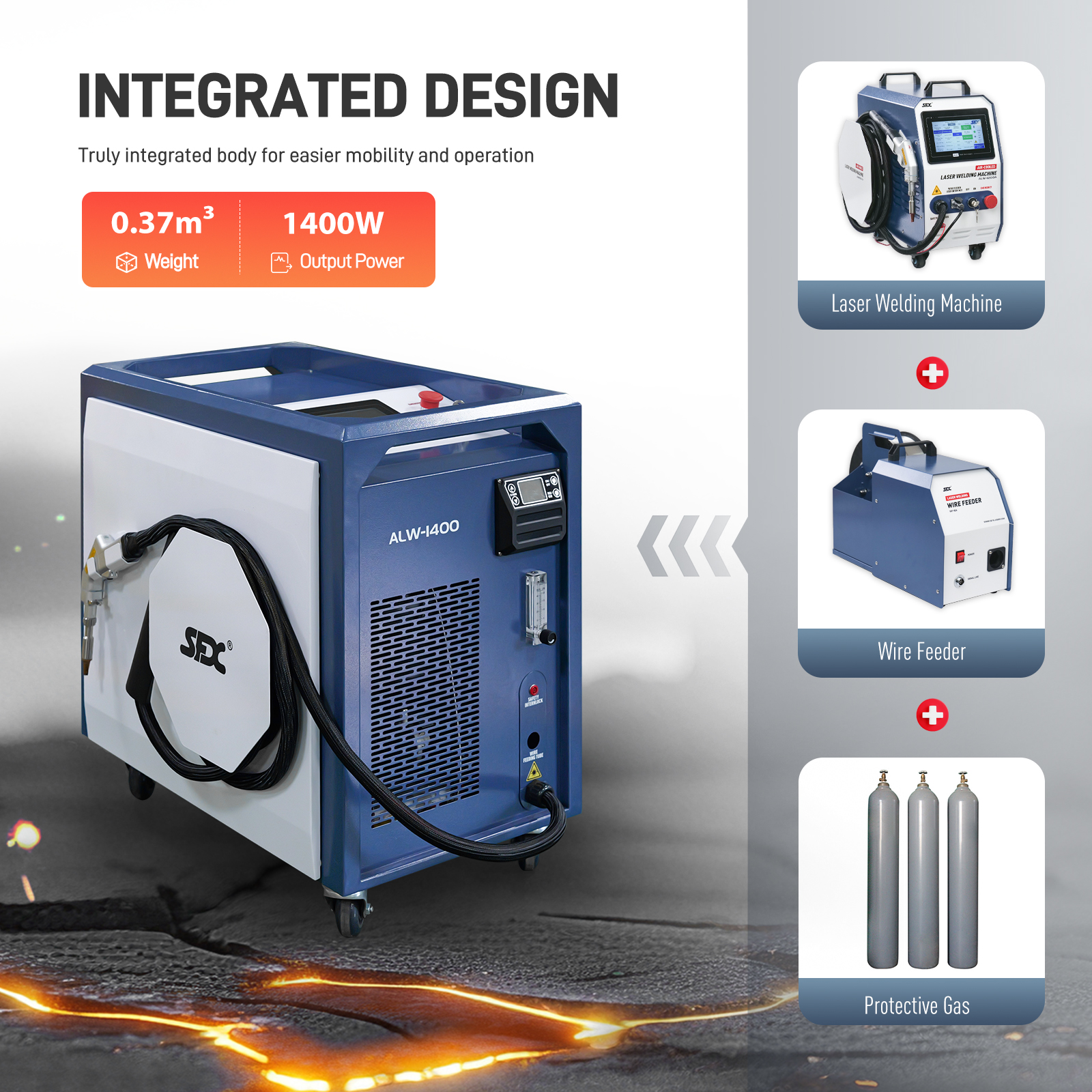

• SFX Integrated 1400W Air-cooled laser welding machine with self-generates protective gas and built-in wire feeding module, easier mobility and operation.

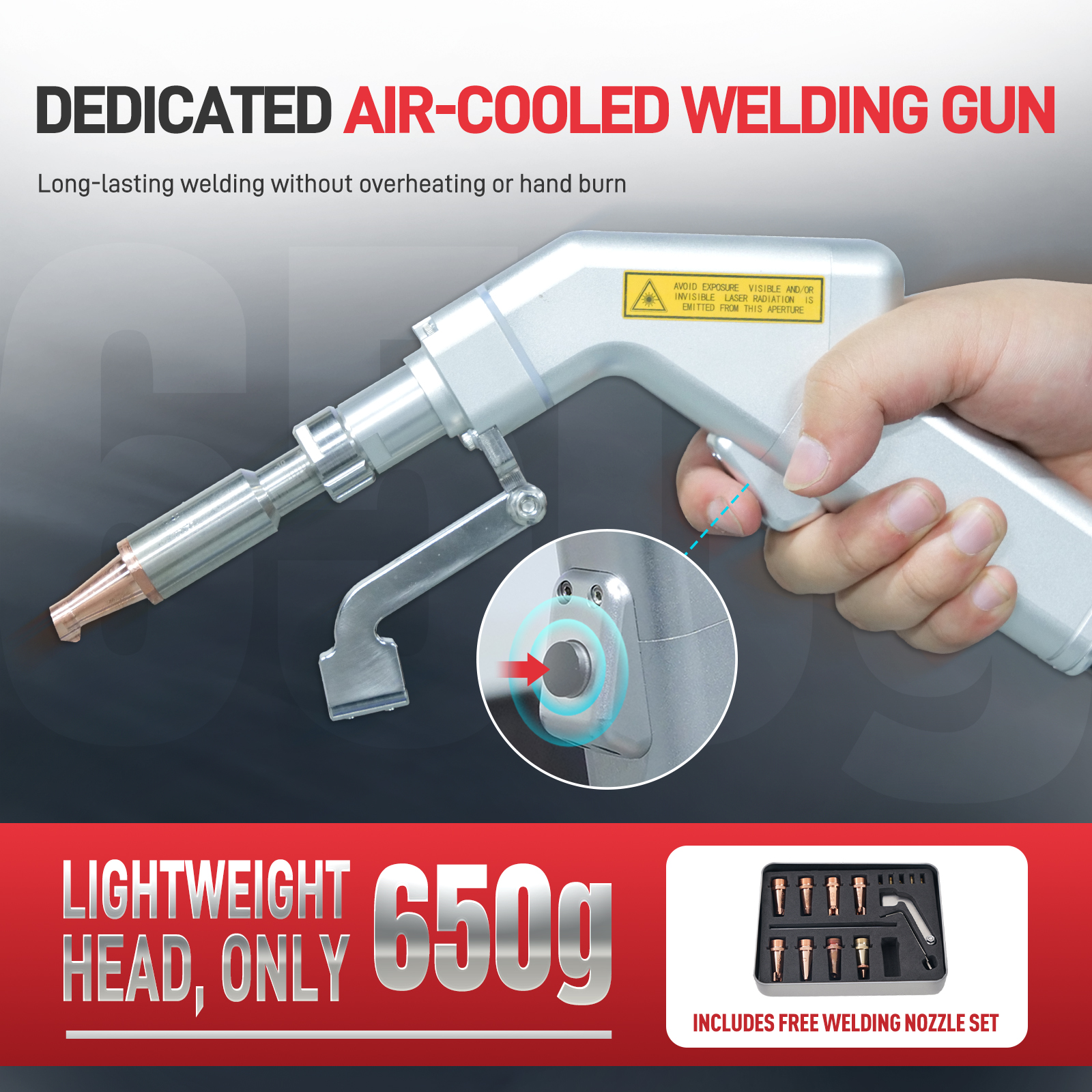

• Volume 0.37m³, 650g gun head. Dedicated air-cooled welding gun, long-lasting welding without overheating or hand burn.
• Welding width 0-5mm, welding speed is 4-10 times faster than traditional welding, High-brightness fiber, high beam quality, smaller heat-affected zone, stronger metal penetration.
• 2-in-1 function, One-click switch to weld and seam cleaning. Remote technical diagnosis, intimate service, immediate response.
• 12 severe tests, intelligent safety protections, including overheating protection, optical cable connection interlock, safety protection circuit to enhance safety and stability during operation.
• 3D phase-change cooling, adaptive intelligent temperature control, low noise and energy saving, SFX ALW-1400 air-cooled laser welder can realize -10℃ to 40℃ continuous welding, fearless of severe cold or heat.
• Optical grade anti-high-reflection technology, breaking the limitations of traditional welding, capable of long-term welding of reflective materials like copper and aluminum welding.
• Wide applicable materials, including stainless steel, carbon steel, galvanized sheet, aluminum, copper, brass, etc. Widely used in hardware, building materials, kitchenware, aerospace, automotive and other industries.
• Wide Welding Capacity: SFX ALW-1400 can weld 4.5mm, stainless steel, carbon steel, galvanized sheet; 3.5mm aluminum; 2.0mm brass, purple copper.

Warranty and Service:

• We offer 1 Year Warranty for the whole sfx handheld laser welder, 2 Years Warranty for the Laser Source. (Consumables are not covered by warranty)
• After Sales Center in CA and NY, USA. Offer Remote Assistance for Operation Issues. Lifetime online technical support.
• Machine Maintenance: Regularly clean the protective lenses. For repairs, please contact us, and our customer service technicians will assist you.
