SFX 500W Robotic Laser Cleaning Machine Precision 6-Axis Automated Rust Paint Oxide Layer Laser Cleaning Solution

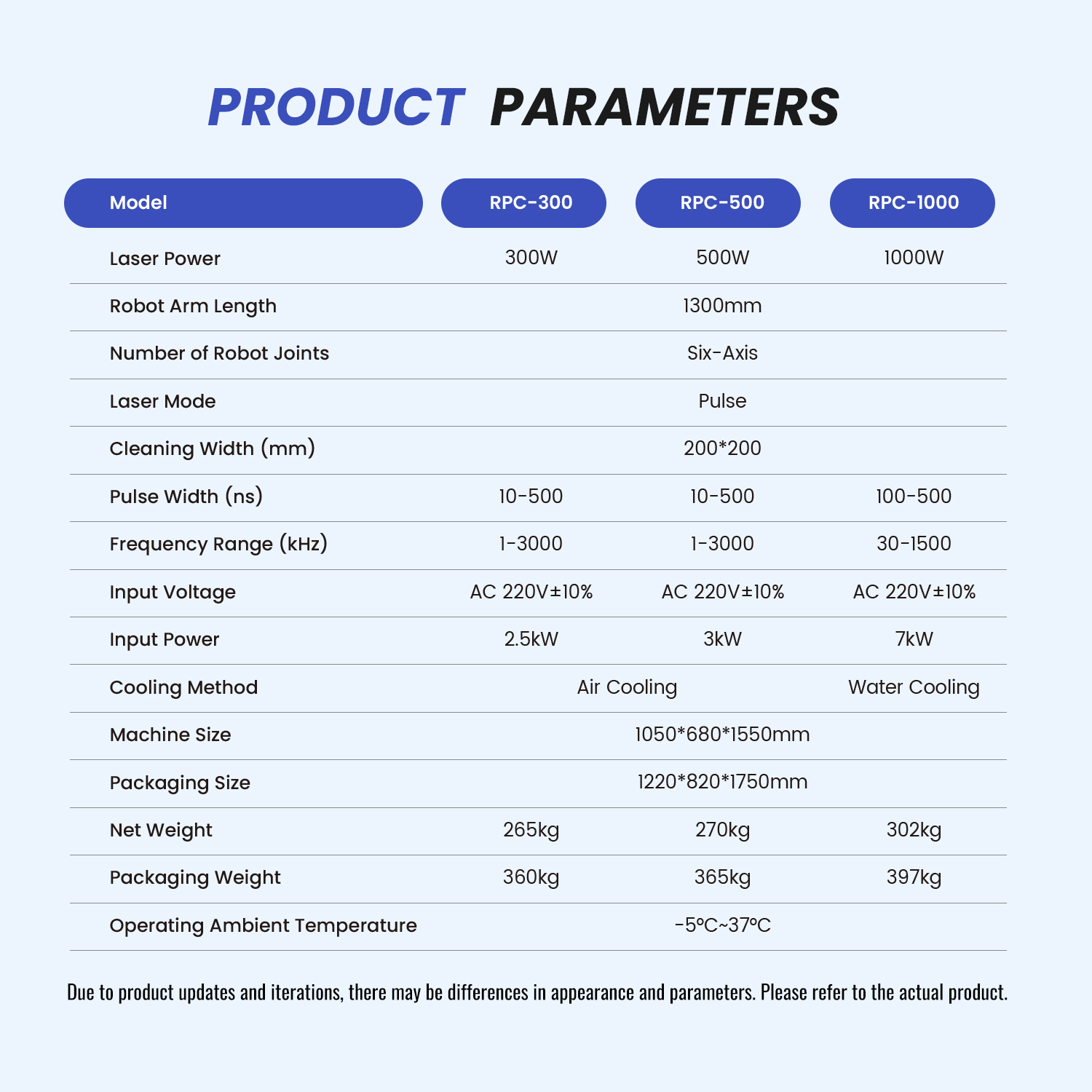

SFX Robotic Laser Cleaning Machine Product Parameters:

• Model: RPC-300 RPC-500 RPC-1000
• Laser Power: 300W 500W 1000W
• Robot Arm Length: 1300mm
• Number of Robot Joints: Six-Axis
• Laser Mode: Pulse
• Cleaning Width (mm): 200*200
• Pulse Width (ns): 10-500; 10-500; 100-500
• Frequency Range (kHz): 1-3000; 1-3000; 30-1500
• Input Voltage: AC 220V ± 10%
• Input Power: 2.5KW 3KW 7KW
• Cooling Method: Air Cooling; Water Cooling
• Machine Size: 1050*680*1550mm
• Packaging Size: 1220*820*1750mm
• Net Weight: 265kg; 270kg; 302kg
• Packaging Weight: 360kg; 365kg; 397kg
• Operating Ambient Temperature: -5°C -37°C

Product Features and Advantages:

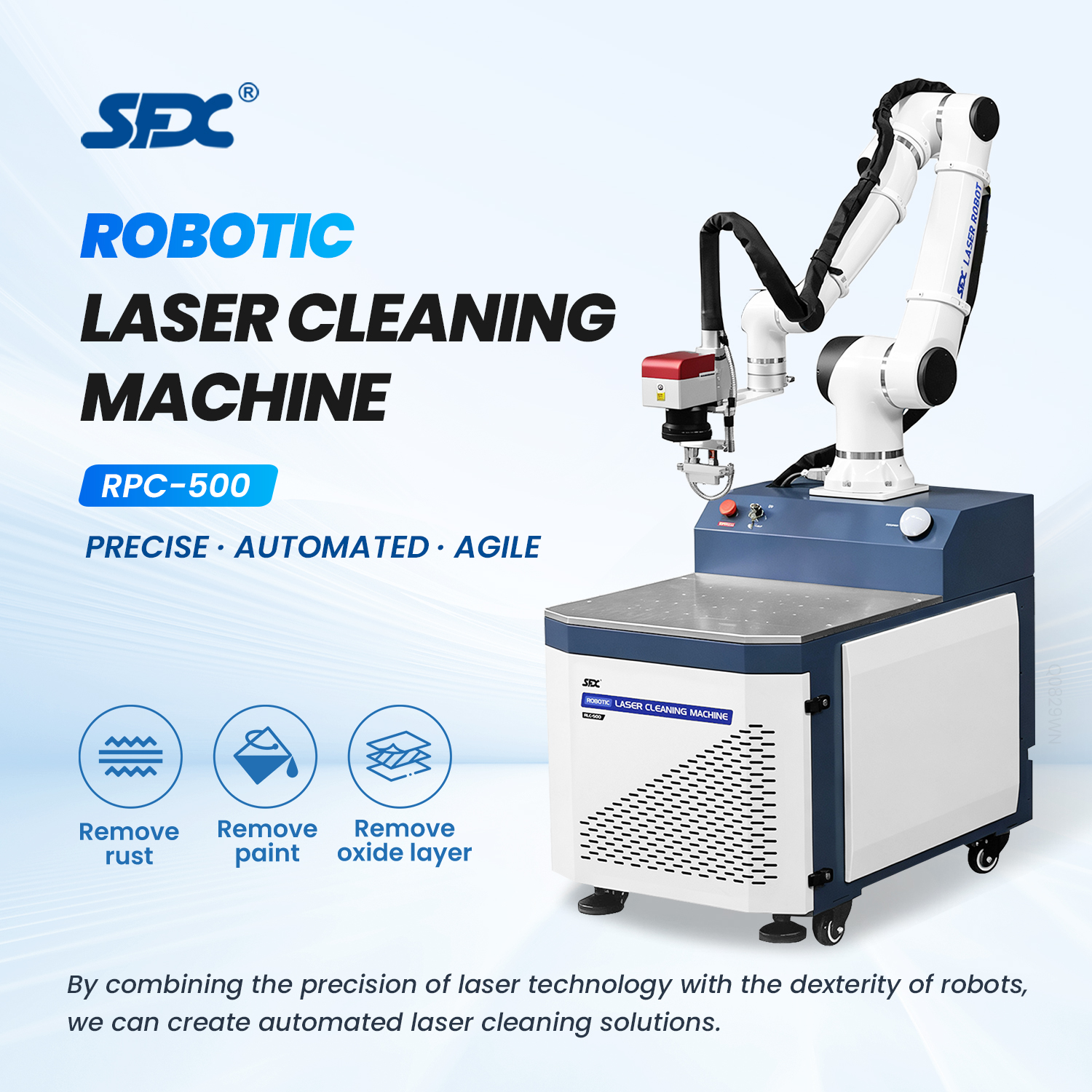

• By combining the precision of laser technology with the dexterity of robots, we can create automated laser cleaning solutions.
• Non-Contact cleaning, no damage to substrate, no consumables. Integrated design, small size, easy to move. Can be quickly put into use after being powered on and supplied with air.

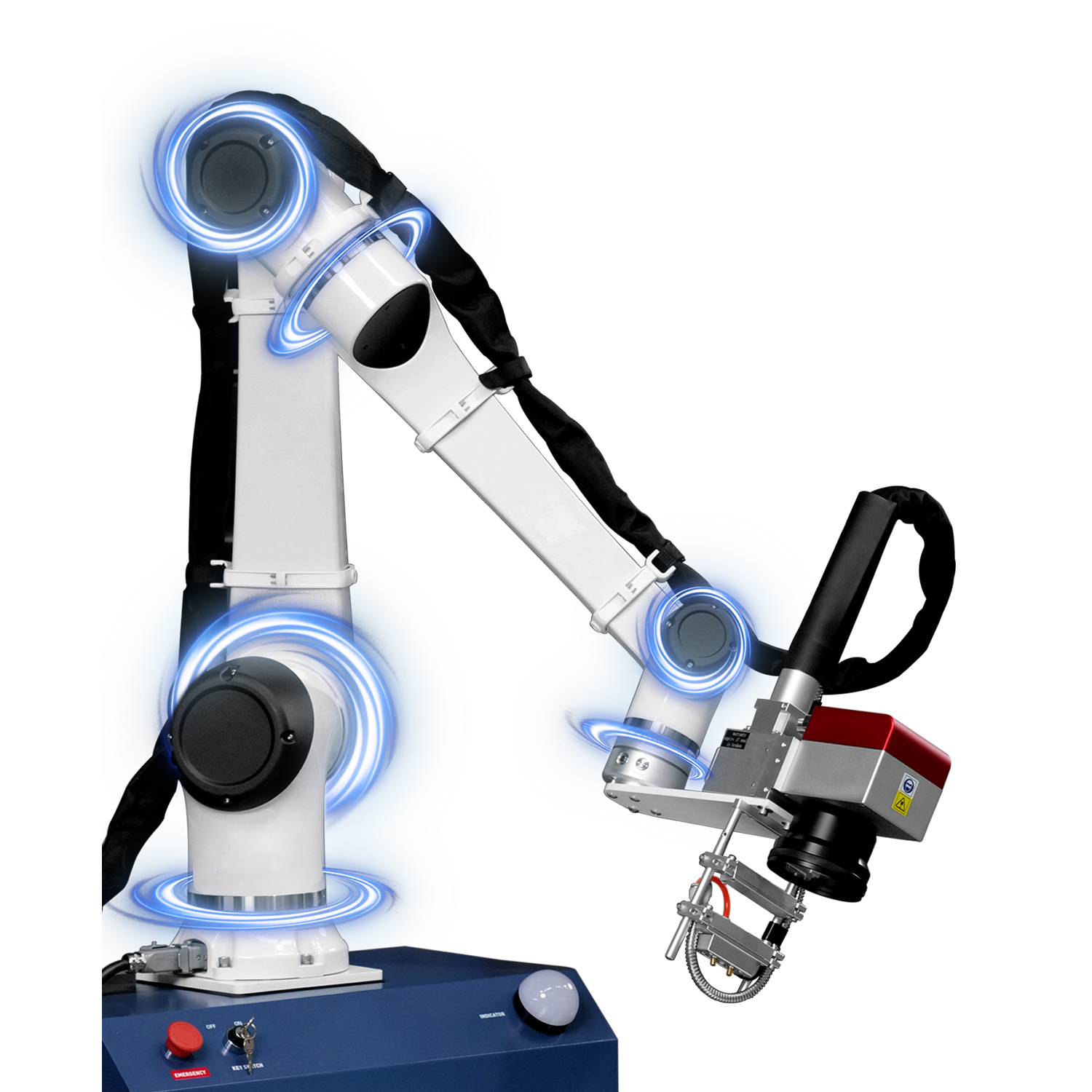

• 6-axis collaborative robotic arm, with a 1.3m reach, it flexibly adapts to the automated cleaning needs of curved surfaces, flat surfaces, and various irregularly shaped parts. Supports continuous batch operations ensuring stable and consistent cleaning results.
• Easy operation, low learning curve teachable drag and drop programming. Manually drag and drop the robot arm to the target location, Record its movement trajectory. Quickly program it, and improve debugging efficiency
• 8 cleaning graphics, dual-swing intelligent laser cleaning gun. Combined with air blades for simultaneous dust removal, this prevents dust from falling back and blocking the laser beam, ensuring cleaning quality.

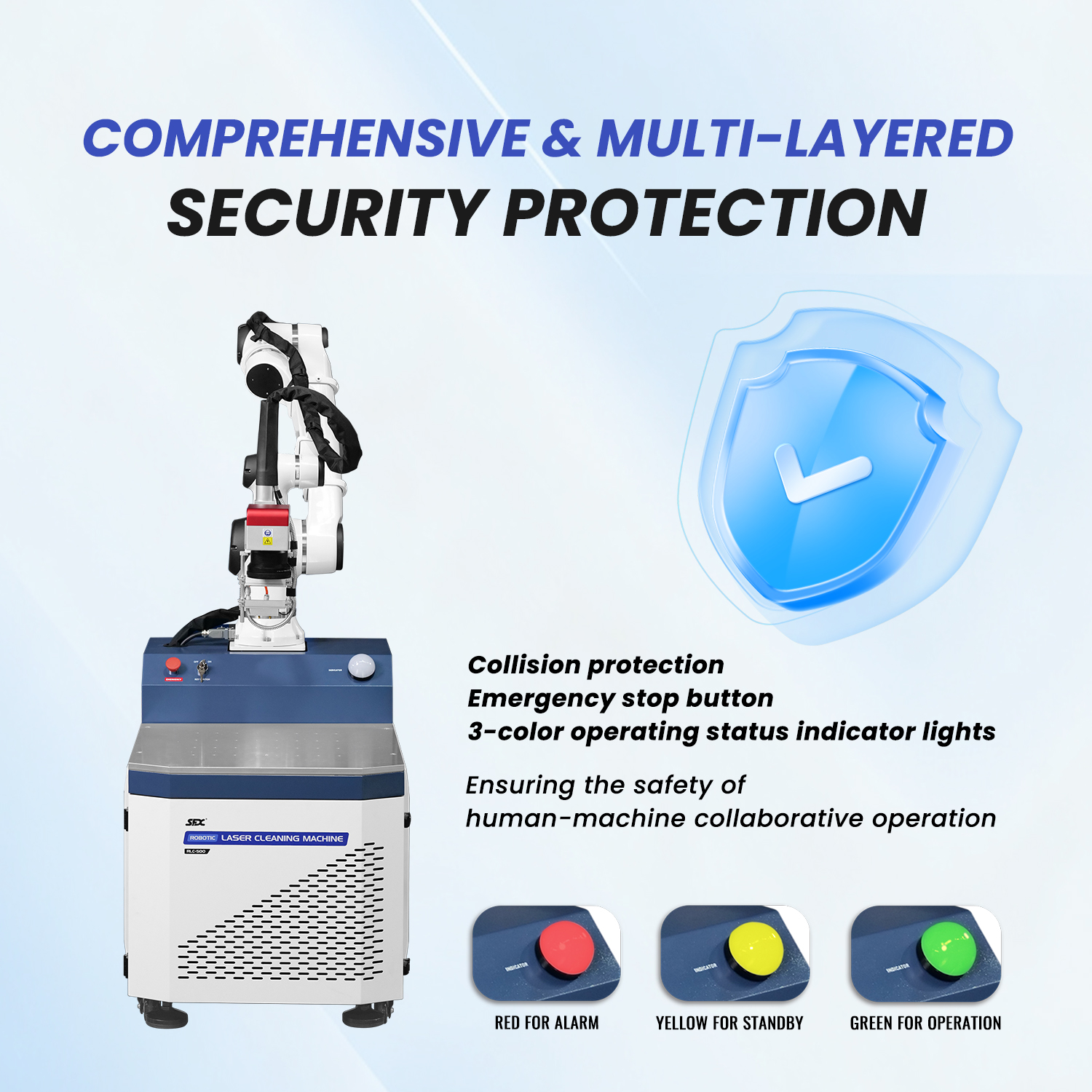

• Comprehensive & multi-layered security protection with collision protection, emergency stop button, 3-color operating status indicator lights. Ensuring the safety of human-machine collaborative operation

Application and Service

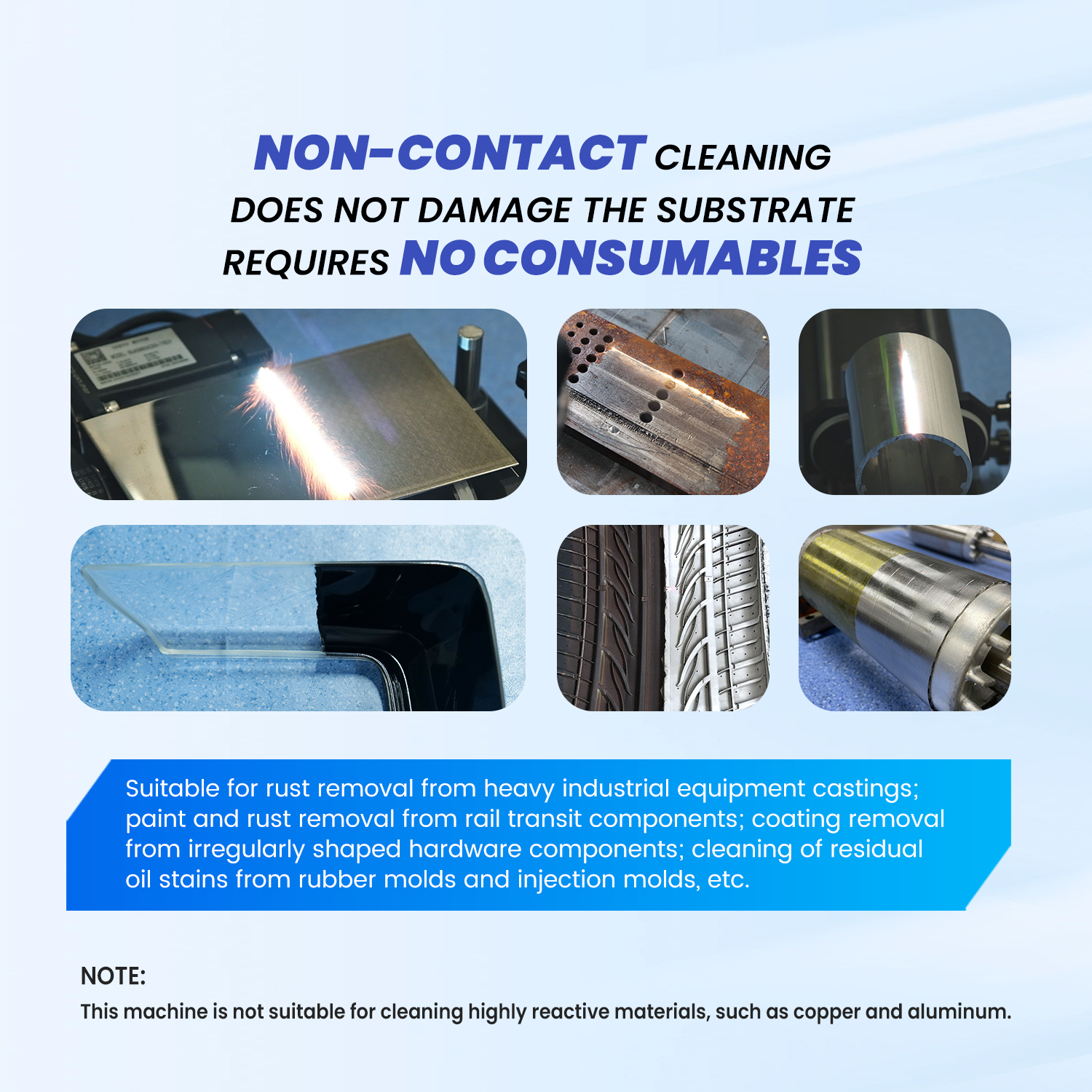

Application: Suitable for rust removal from heavy industrial equipment castings; paint and rust removal from rail transit components; coating removal from irregularly shaped hardware components; cleaning of residual oil stains from rubber molds and injection molds, etc.

Please note: this machine is not suitable for cleaning highly reactive materials, such as copper and aluminum.

One year warranty for the whole enclosed automatic laser cleaning machine, two years warranty for the laser source.

After Sales Center in CA and NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.

Free Shipping to your Door by sea, No Import Duty for American Customers.
